In-Depth: The Patek Philippe Reference 2509

A timeless classic — sometimes overshadowed, yet deserving its own spotlight.

A rare 2509A with Type 1 dial from 1960 on a period Gay Freres folded-link, jubilee style bracelet. Image courtesy of Dave Marcinek, @dmm718.

INTRODUCTION

The reference 2509 had a production run from 1950 to 1968. It’s the sibling to the ref. 2508 with some very similar and also very different features. Both were manufactured and housed in the famous Francois Borgel, (Taubert) screw-back case designs and while they look similar in some respects, they are also different in case and dial design, along with the movement(s) used - all of which we’ll touch on in this reference article.

The ref. 2509 is another so-called “Calatrava” model by current terminology. Among collector conversations, the ref. 2508 often takes the limelight in direct comparisons, however the ref. 2509 deserves proper respect on its own merits as a worthy reference worth hunting for one’s vintage, time-only Patek collection.

The ref. 2509 was manufactured in precious metals of yellow and rose gold. Steel was the other material and is the rarest by the numbers produced, followed by rose gold. Approximately 10% or less of the original production across all metals is currently known back in the market. Yellow is the most common with < 80, followed by rose gold at < 30 and finally steel at approximately 25 examples — according to published information and discussion among experts in the field. Given the passage of time, finding examples in what is considered top collector-grade condition is not an easy task and is becoming more difficult in recent years.

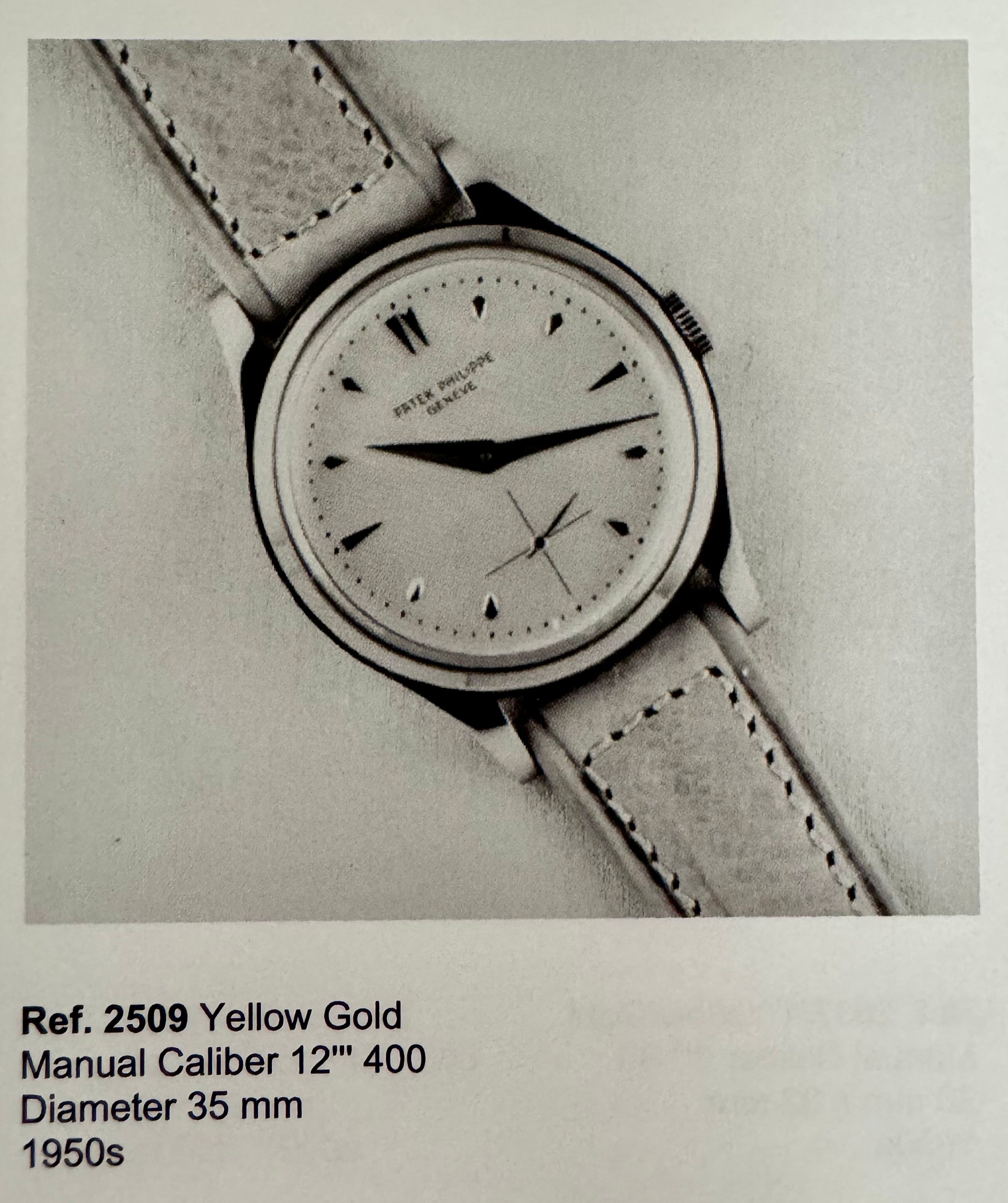

Period catalogue image of ref. 2509J from Patek Philippe featured in Patek Philippe in America Vol. 1, Men’s Watches by John Reardon.

THE DIAL

Similar to the ref. 2508 sibling, these dials are best categorized by type as opposed to series, given the non-linear appearance of different styles that were introduced during the reference’s production. The dials fall into two distinct types, with the second consisting of two sub-types for a total of three unique dial configurations. Dial finishes known on the reference are typically silvered and less common, rose. Unlike the ref. 2508, I’m unaware of any black dial examples known. Let’s break down the different dial types.

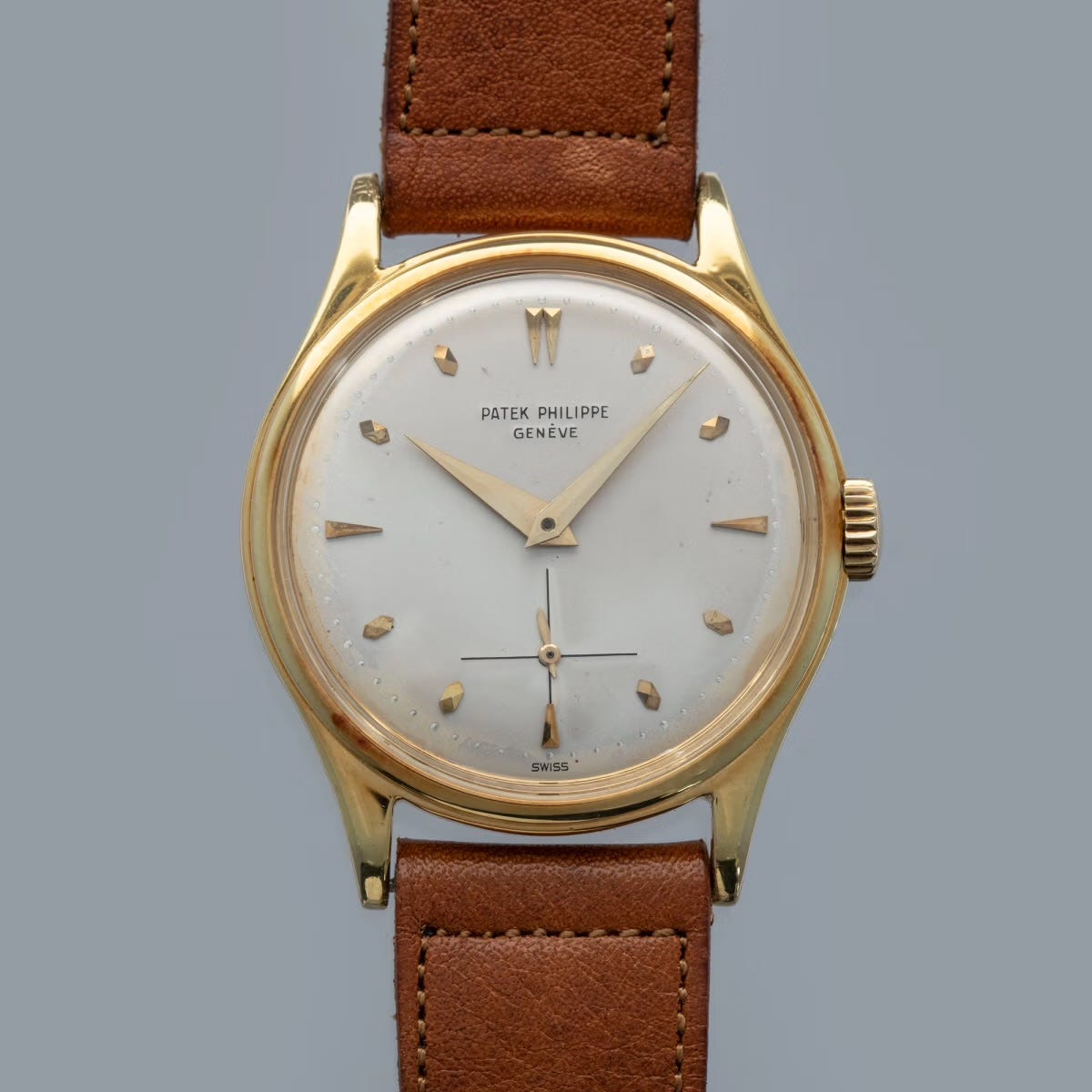

Type 1 - This is the quintessential appearance of the ref. 2509. It sports a dial with geometrically shaped indices. The twelve marker is a dual faceted dagger, the three and nine markers are singular daggers, while the other hour markers are faceted and uniquely creased to resemble something like the paper airplane I folded and flew during a teacher’s classroom break at school in my youth. Unfortunately…I was caught in the act of launching it when the teacher opened the door back to class, which resulted in a trip to the principal’s office for me!

The result of the creased facets is a dial with markers that reflect light with a touch of understated brilliance. This marker configuration is unique to the ref. 2509. The sub-seconds indicator stands in contrast to the hour markers, as a simple engraved, enameled crosshair design which divides the seconds into four sections of fifteen second intervals by sector lines of equal proportions. The minutes track is pearled with dauphine hour and minute hands, and a leaf sub-second hand.

Note the pristine original opaline finish and deep, rich engraved enamel of the original signature on this Type 1 dial.

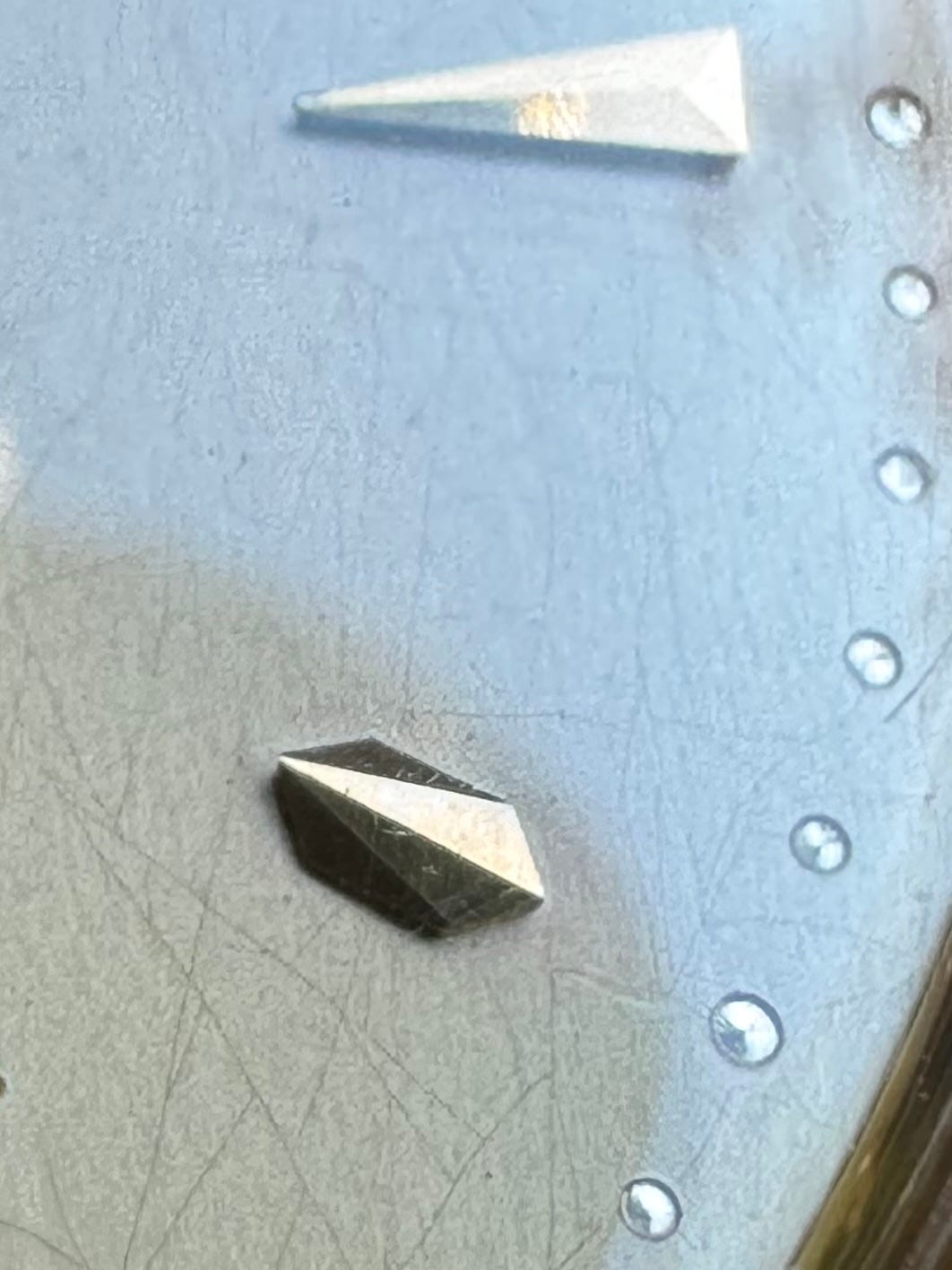

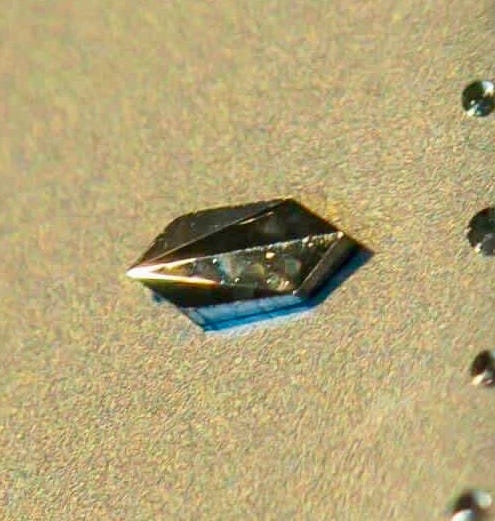

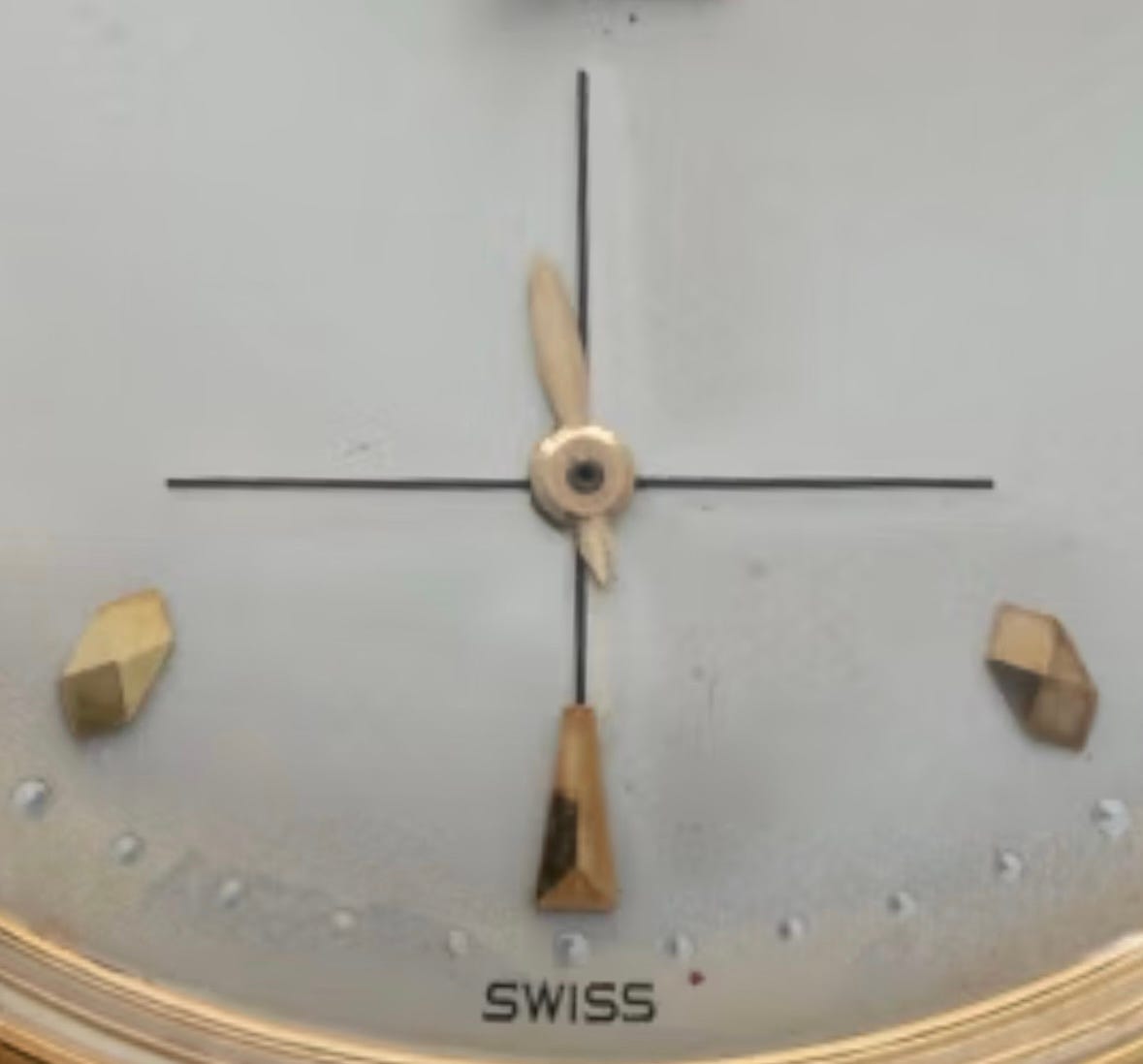

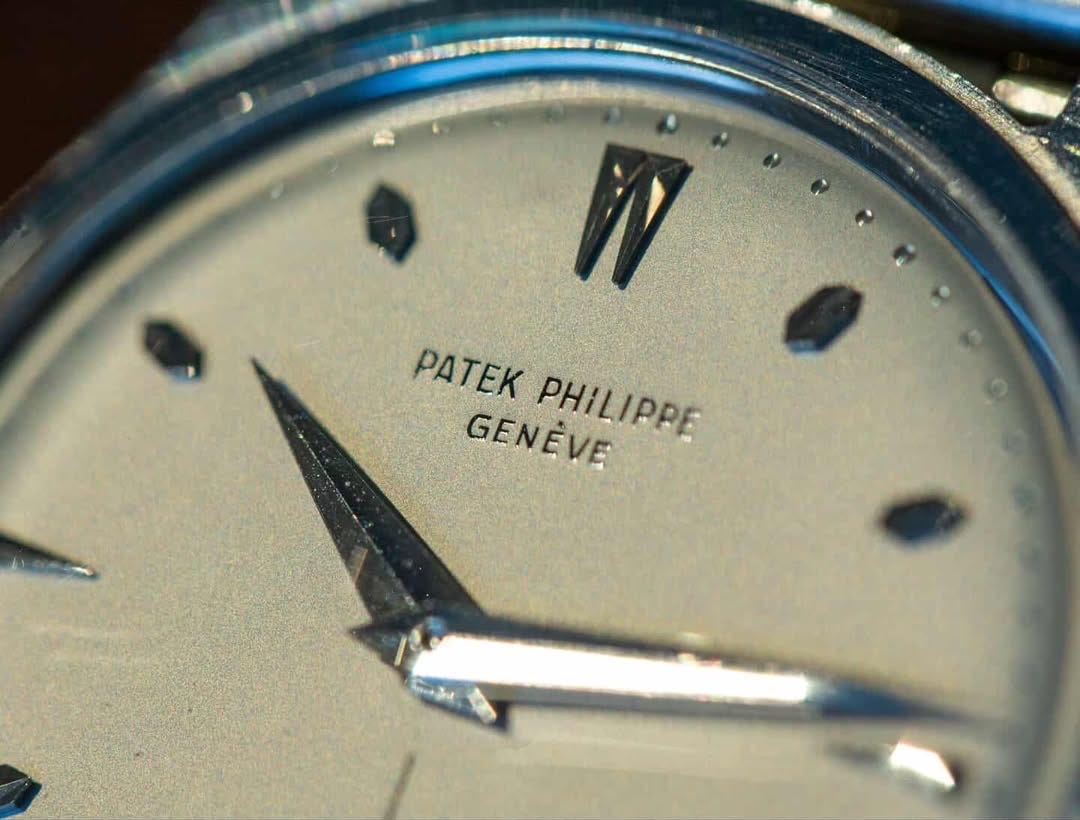

Macro of folded/faceted hour marker of Type 1 dial. The marker creases are clearly evident. Above images courtesy of Dave Marcinek, @dmm718.

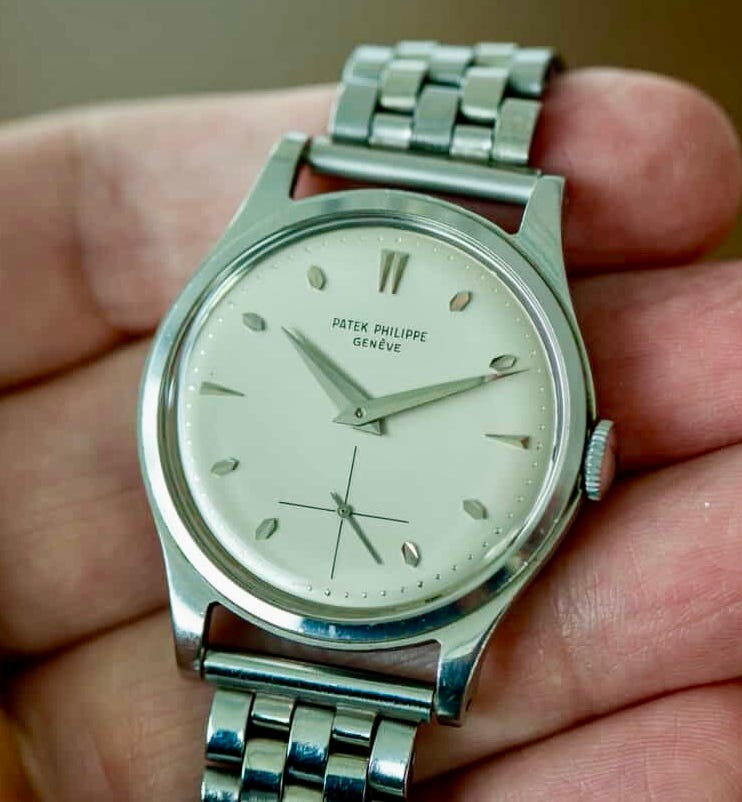

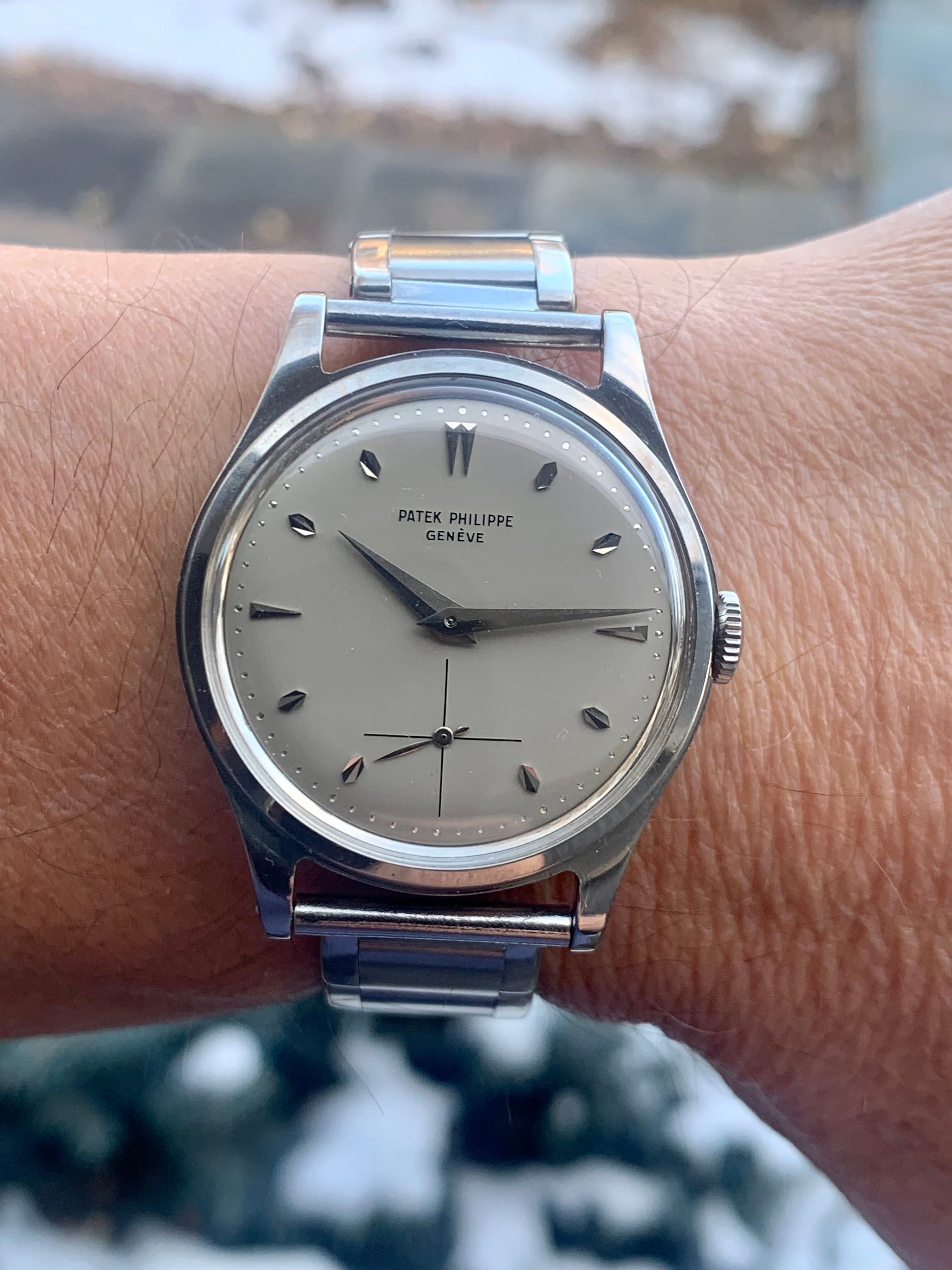

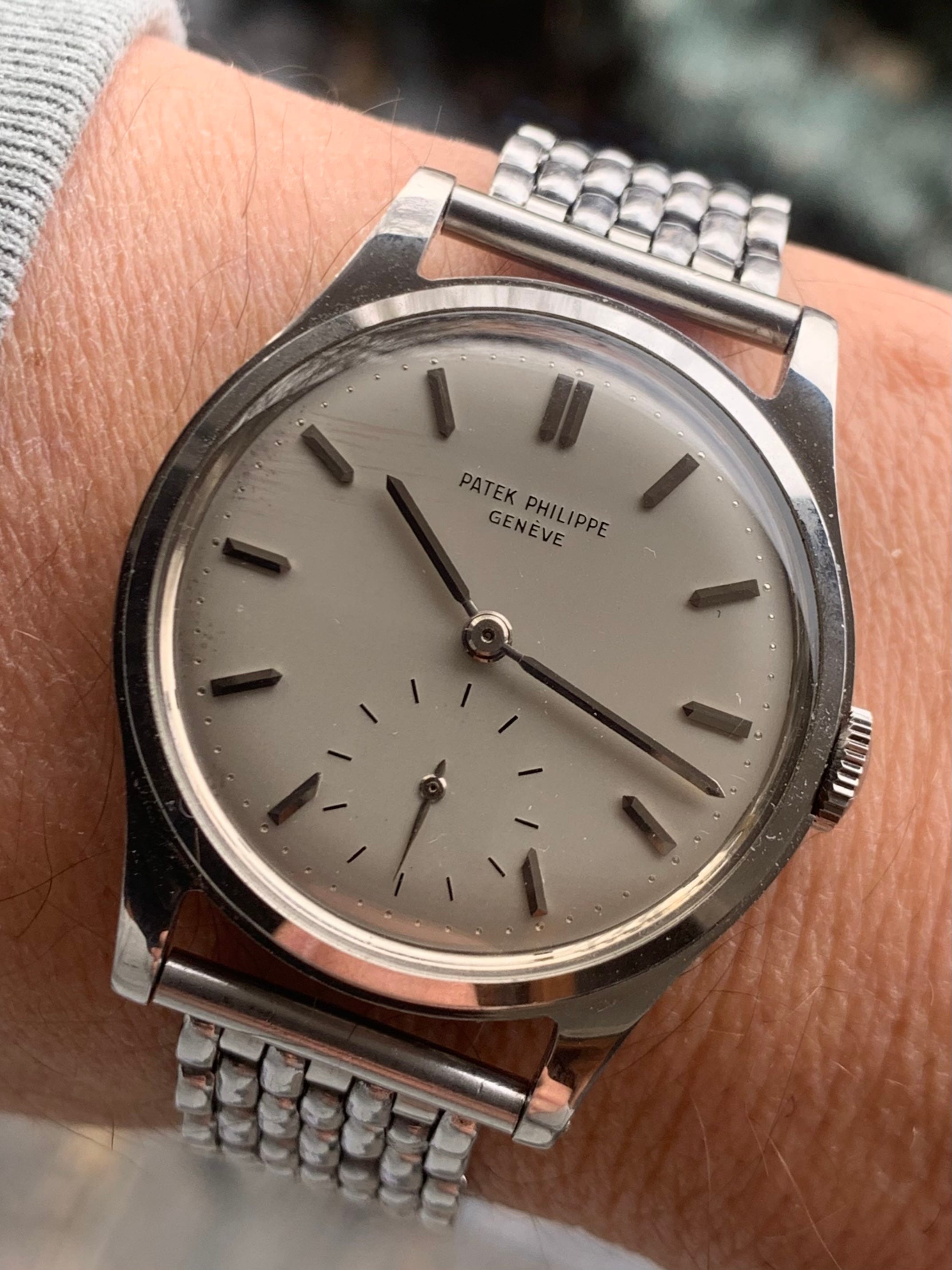

A ref. 2509A with Type 1 dial on my wrist.

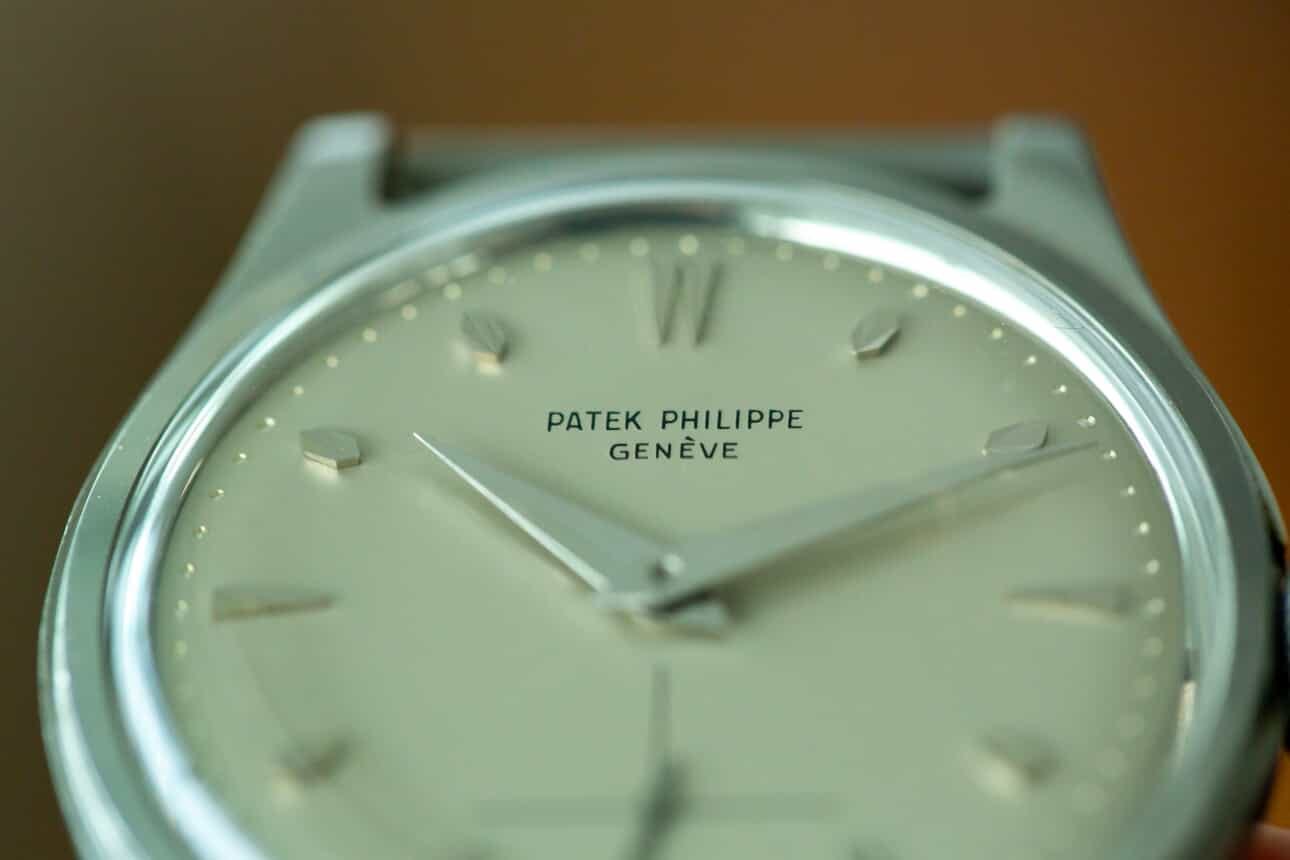

Angled view showing the pearled outer minute track. Image courtesy of Dave Marcinek, @dmm718

Type 2 - This type features lapped indices to mark the hours and is divided into two subtypes.

Type 2A - Lapped indices that are either solid or radium lume filled. The outer markers are pearled and the hour and minute hands are either solid or lumed dauphine with leaf sub-seconds. The sub-seconds track is the enameled crosshair sector style. On at least one known example in rose gold from 1954 with solid lapped indices, the five and seven markets are tapered at an angle.

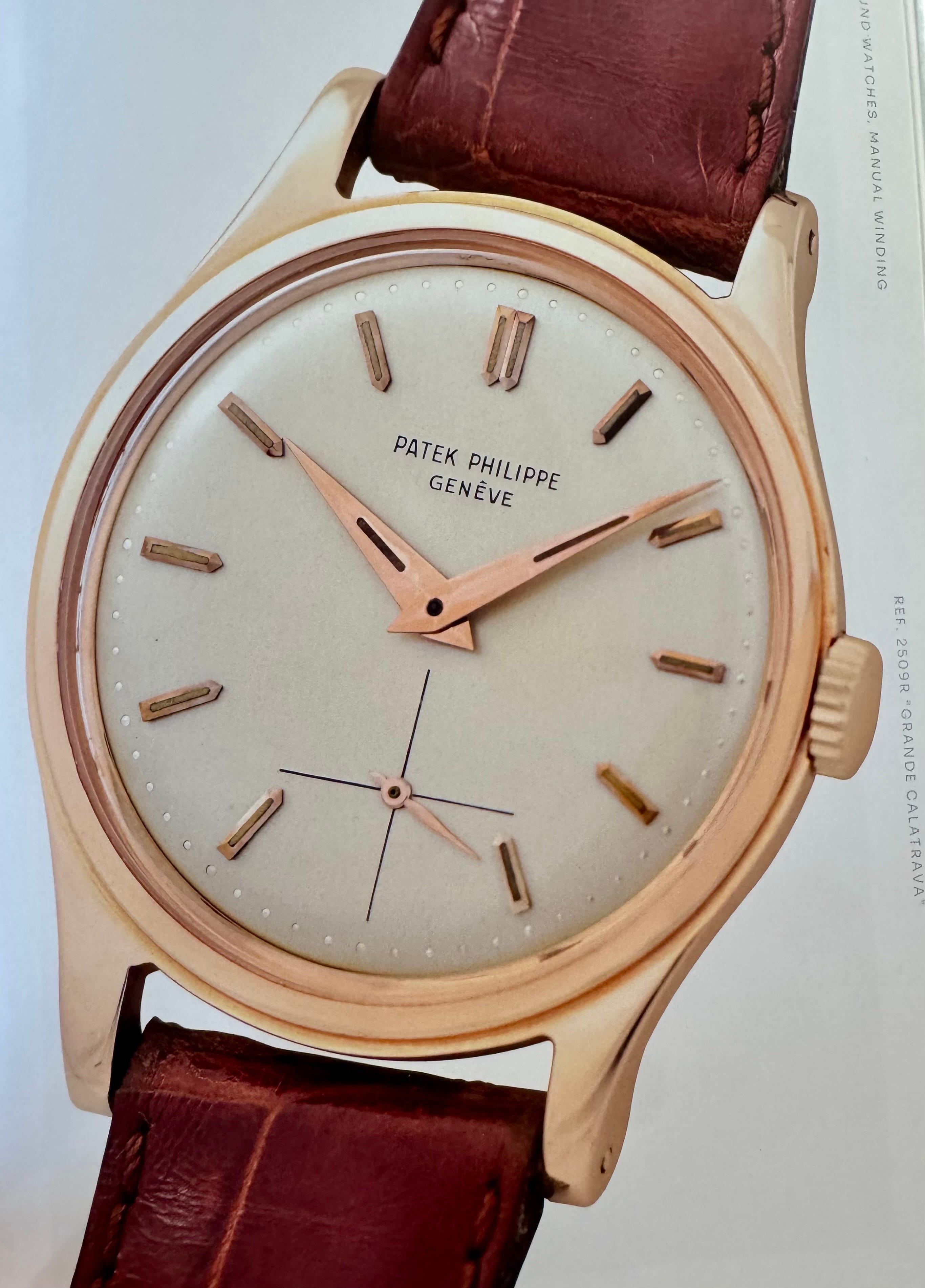

A rare ref. 2509R Type 2A luminous dial. Image courtesy of Ali Nael from his publication, Patek Philippe My Dream Collection.

A rare ref. 2509R Type 2A from 1954 with solid lapped indices. Note the tapered markers at five and seven. Image courtesy of @ok.wristwatch.

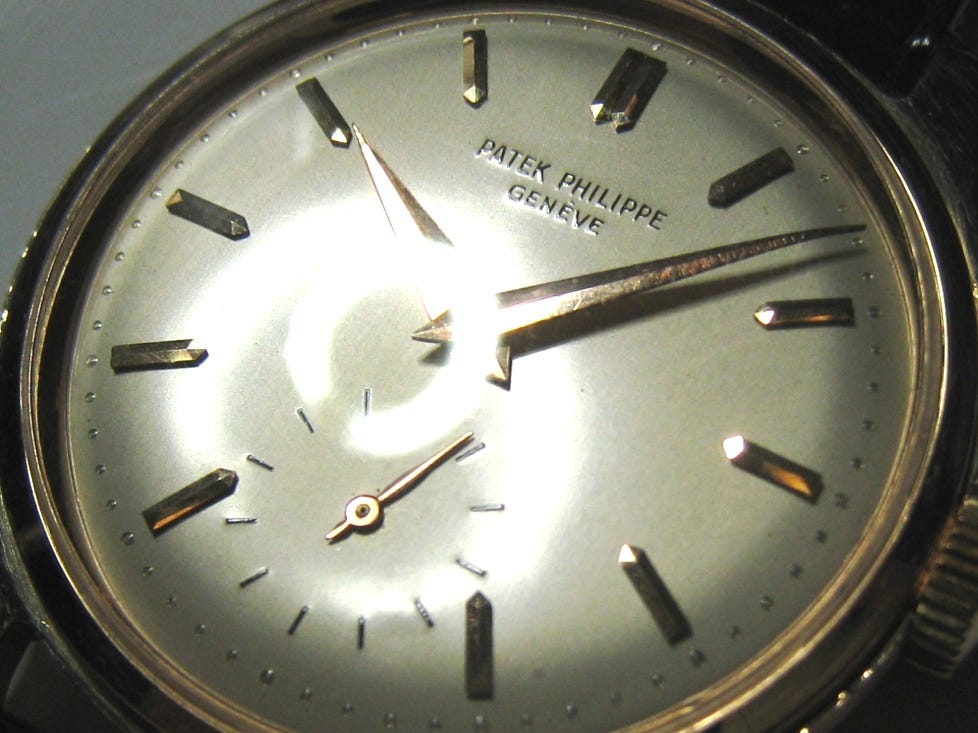

2509R Type 2A dial under light. Note the deep, rich and complete engraved, enameled signature and crosshair are slightly raised to the dial surface. The minute track pearling is sharp with crisp borders. These are signs of correct appearance on a dial that has retained its original finish.

Type 2B- Lapped indices that are either solid or radium lume filled. The outer markers are pearled, and the hour and minute hands are either solid or lumed dauphine or - less commonly - baton, with matching baton or leaf sub-seconds. The sub-seconds track features circular enameled hash marks. On very few solid lapped marker examples from ‘54 - ‘55, the open sub-seconds is larger with the five and seven markers tapered at an angle. Two I’ve discovered known in rose, one in yellow gold and one in steel. There is one known in steel with a sub-seconds track showing longer hash marks at 15 second intervals.

A rare ref. 2509J Type 2B luminous dial. Image courtesy of Ali Nael from his publication, Patek Philippe My Dream Collection.

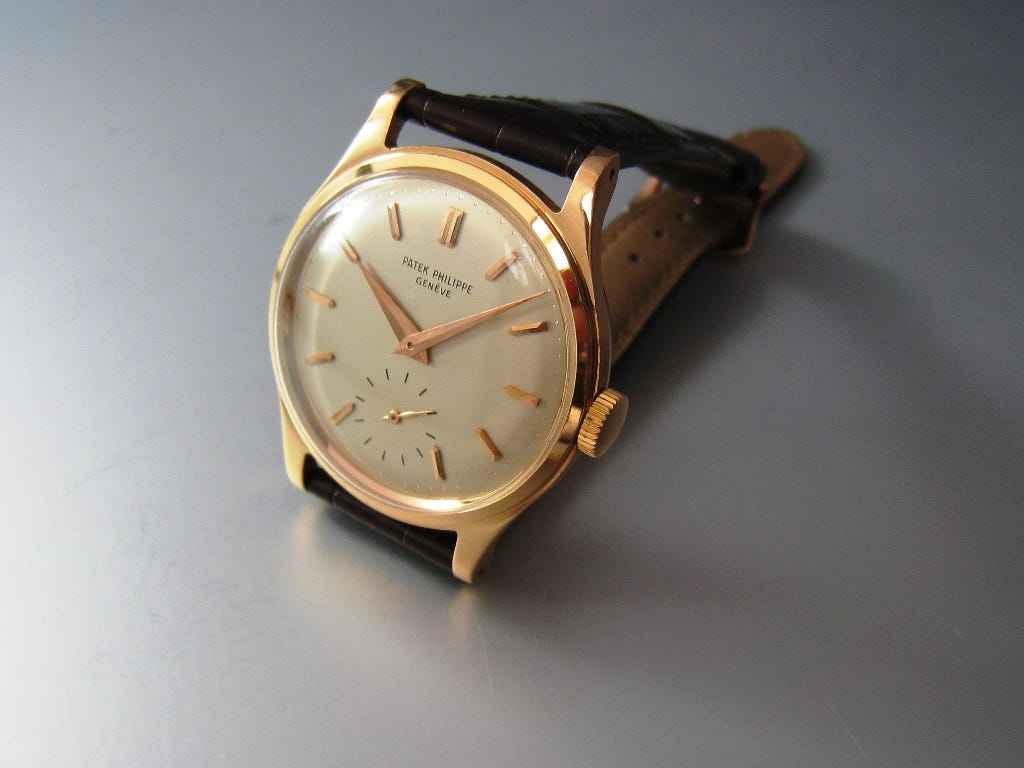

Profile of a very rare ref. 2509R from 1951 with Type 2B dial.

Note the crisp and original engraved enameled signature and sub-seconds track under light. Images courtesy of John Nagayama.

A very rare 2509R, likely circa 1955 with larger open sub-seconds and tapered five, seven markers. Image courtesy of @watchesandvintage, Tobias Teleng.

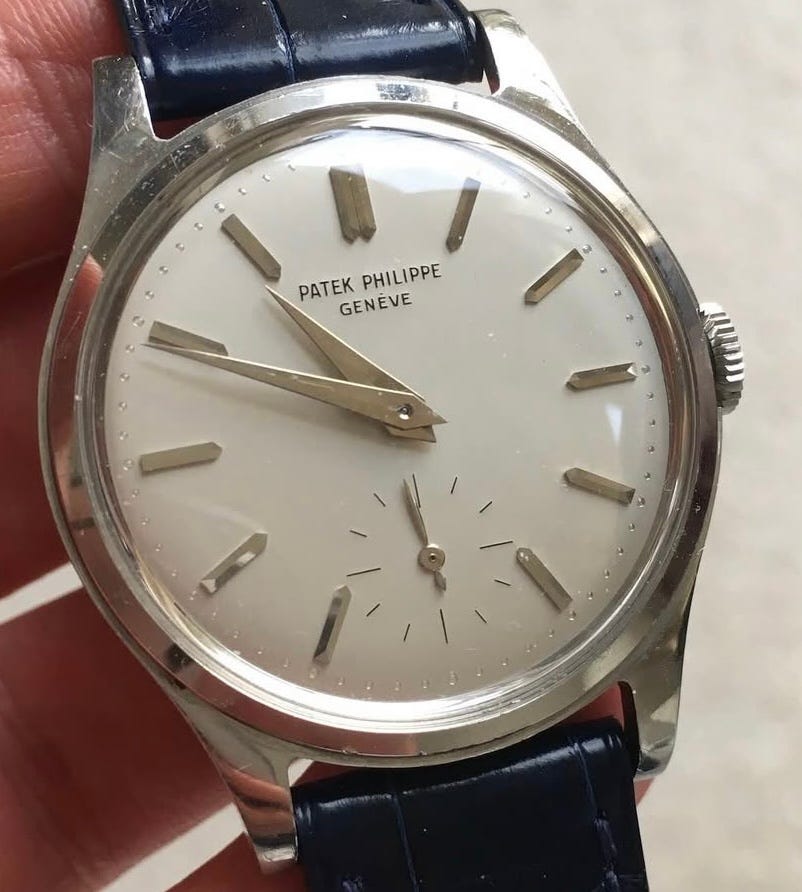

A 2509A in very crisp condition from 1966. Note the longer hash marks at 15 second intervals on the sub-seconds. Image courtesy of @i.s.thomson

Exceptionally rare 2509A with Type 2B dial and rarely seen baton hands from 1954 with original papers and Gay Freres beads of rice bracelet. Note the larger sub-seconds with tapered five and seven markers, less commonly seen and only I’m familiar with in steel. Auctioned by Christies for CHR 56,250 in November 2013. Image courtesy of Christie’s auctions.

NOTE: This watch was auctioned by Christies as noted above. It was stolen in Paris from Luke Woods residence in 2024. Please note serials shown in original paper image below. Any information leading to its whereabouts and retrieval should be shared via my contact information below.

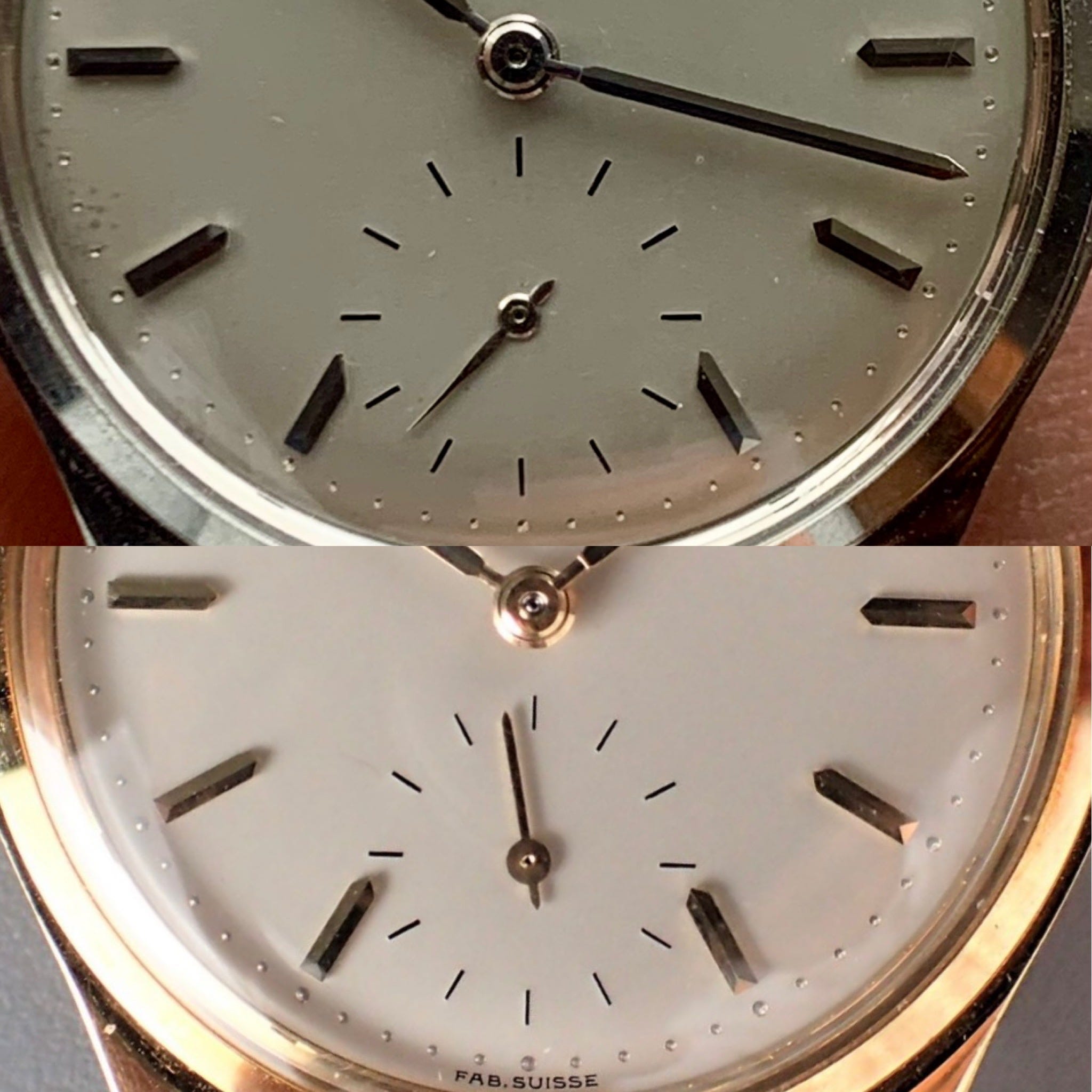

Note the slight difference in size and relative position of the sub-second track on the two Type 2B examples. Bottom reference image courtesy of John Nagayama.

THE MOVEMENT(S)

Unlike the ref. 2508, which relied upon a singular movement (cal. 27SC), the ref. 2509 incorporated three different movement calibers during its run. The first caliber at launch in 1950 was the cal. 12-120. It is not a commonly seen movement by the numbers in the ref. 2509, given the short duration of use.

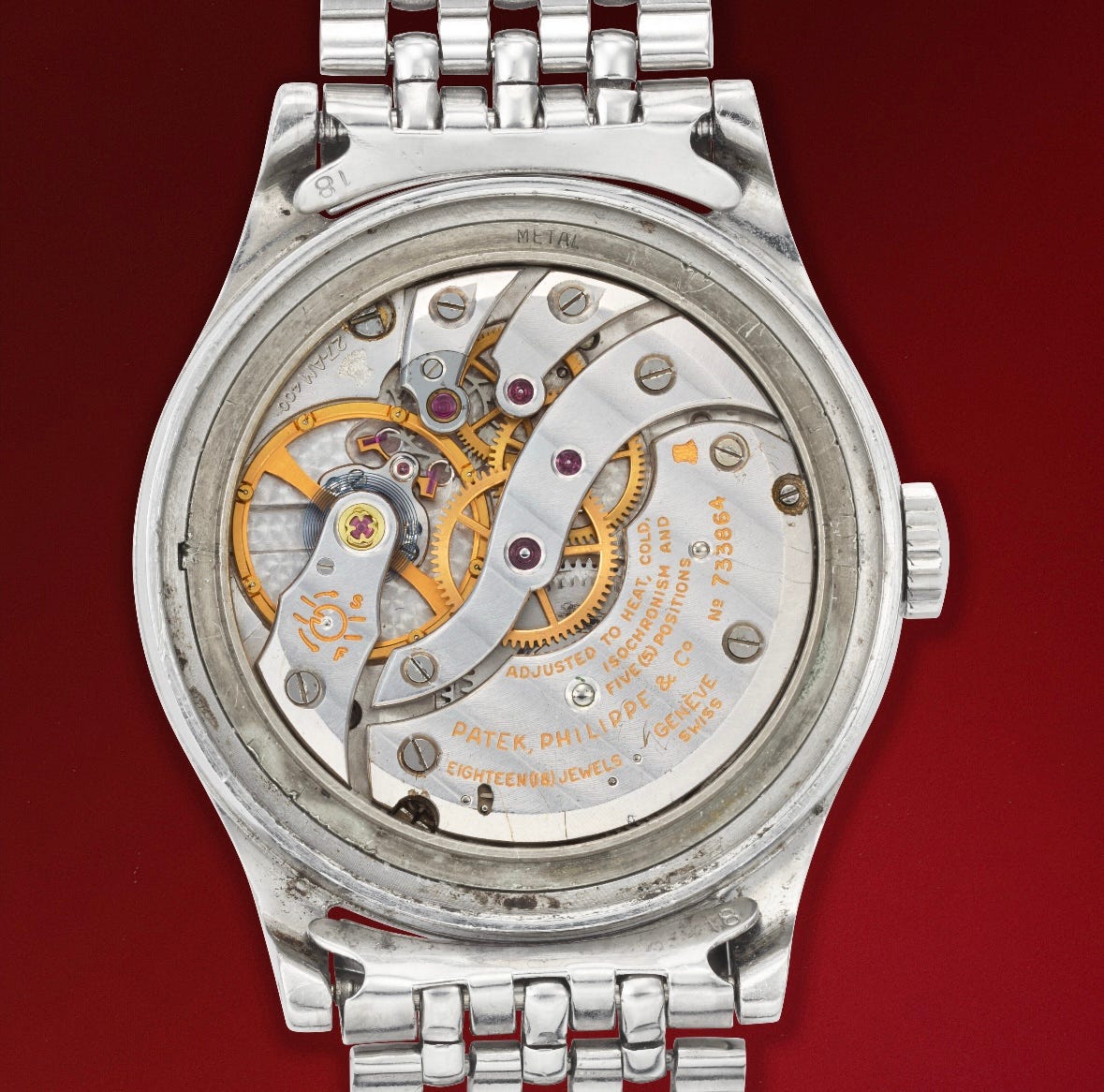

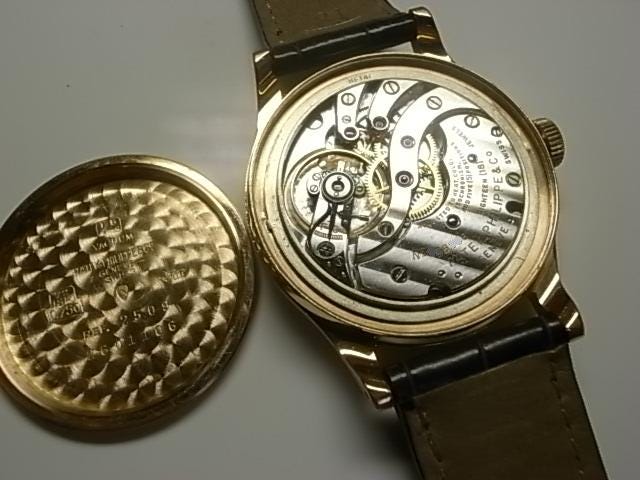

2509R example with 12-120 movement from 1951. Image courtesy of John Nagayama.

By 1951, the cal. 12-400 drove the timekeeping and is known in examples until around 1962. This caliber appears to have been used in the greatest number of examples produced. Unlike early examples, the later movements show two Geneva seal stamps.

Later 12-400 movement in 1960 ref. 2509A with two Geneva seals. Image courtesy of Bukowski’s auctions.

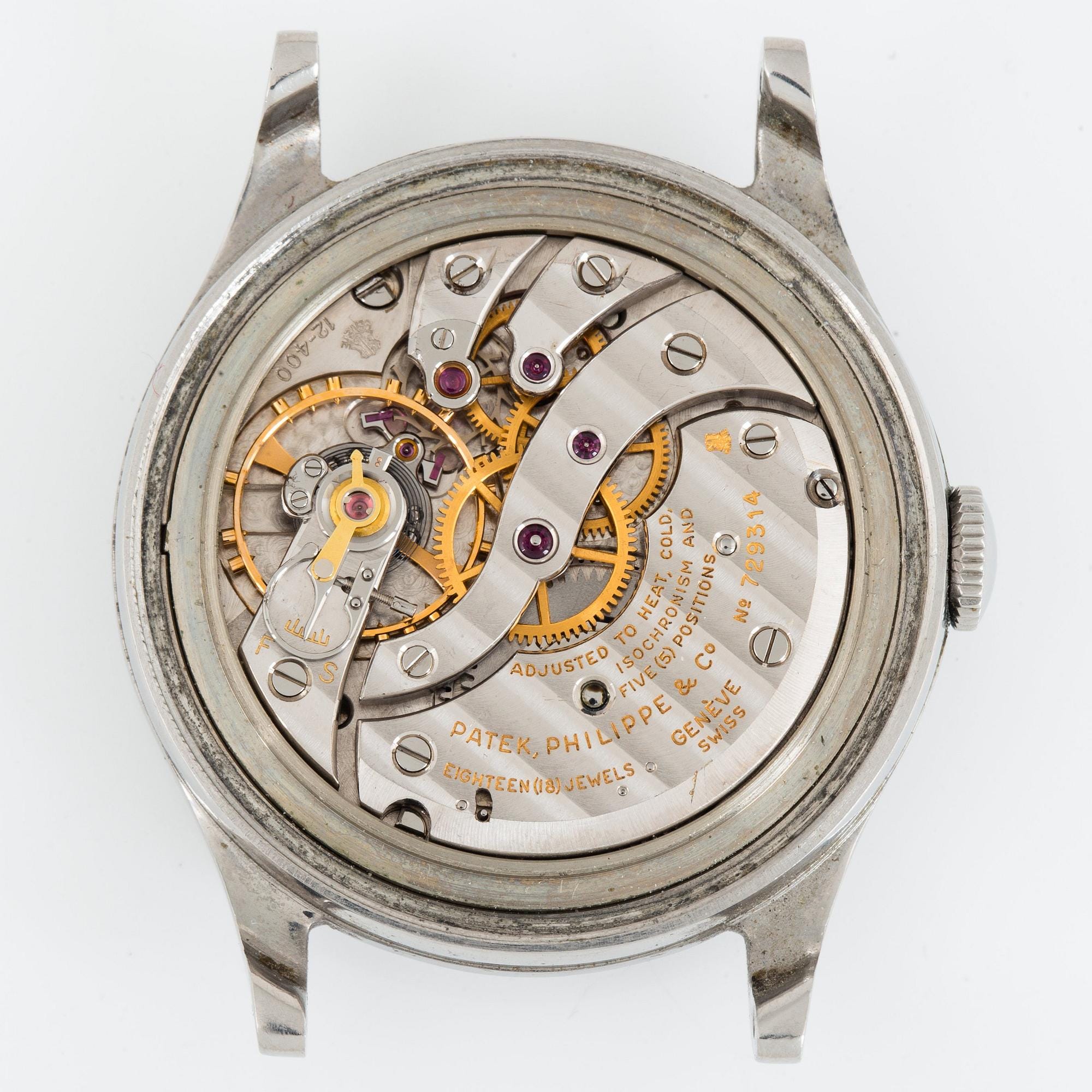

Image of 12-400 movement without Geneva seals in ref. 2509A from 1954. Image courtesy of Luke Woods. Note the inner dust cap that provides magnetic field protection.

Overlapping the tail end of the 12-400 run was the final caliber used in the ref. 2509, the 27-400AM. The AM designating the movement as “anti-magnetic”. The 27-400AM provided additional protection with its Gyromax balance and beryllium components. Together these components provided greater anti-magnetic protection than the inner dust cover shielding the movement alone in all ref. 2509 cases. The cal. 27-400AM was seen in some ref. 2509 examples by at least ‘61 and continued through final production of the reference in 1968.

1966 2509A example with 27-400AM movement. Note the dual Geneva seal stampings. Image courtesy of Christie’s auctions.

THE ELEGANT CASE

While presenting a very similar design to the 2508, the case does feature some differences in appearance. The mid-case is satin brushed on the sides and is slightly slimmer than the mid-case of the 2508. The overall height is also a bit slimmer, given the ref. 2508 uses a thicker movement. The result of these differences gives the ref. 2509 a flatter profile on the wrist that leans more toward an elegant-dress, as opposed to the ref. 2508 and its sport-elegant appearance.

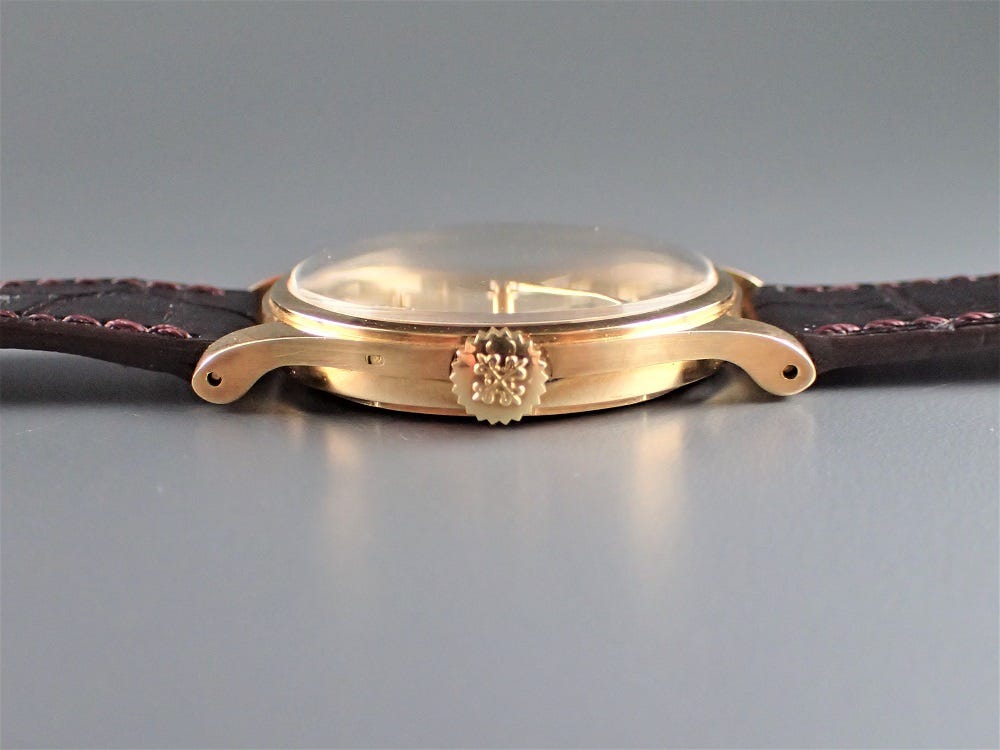

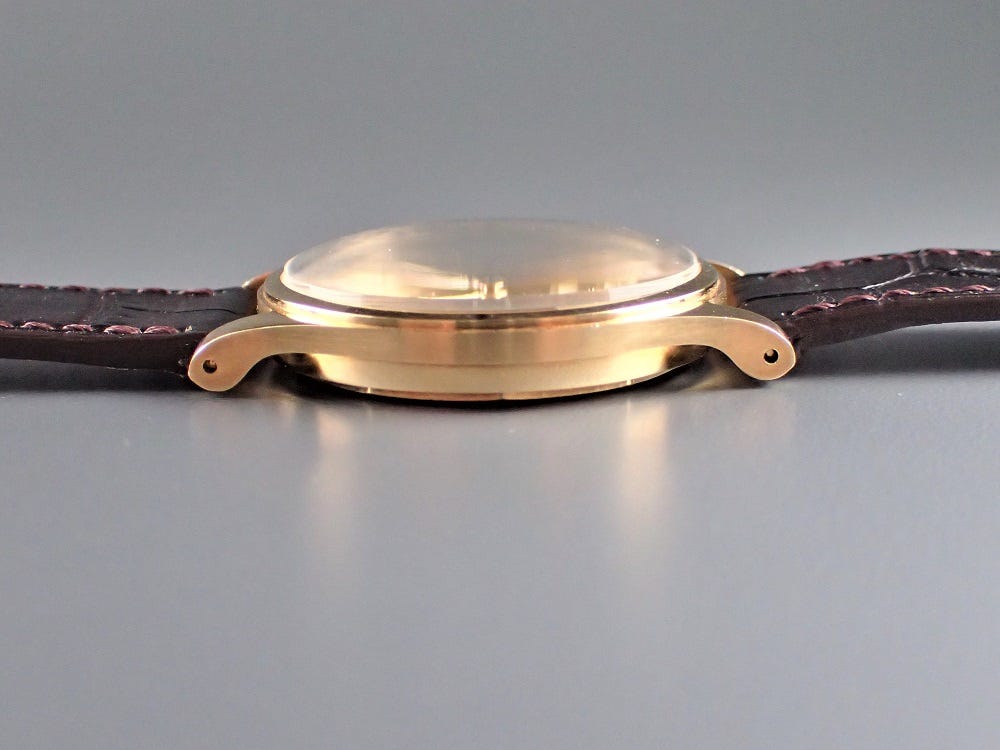

Above side profiles of very rare 2509R from 1960 for French market. Images courtesy of John Nagayama.

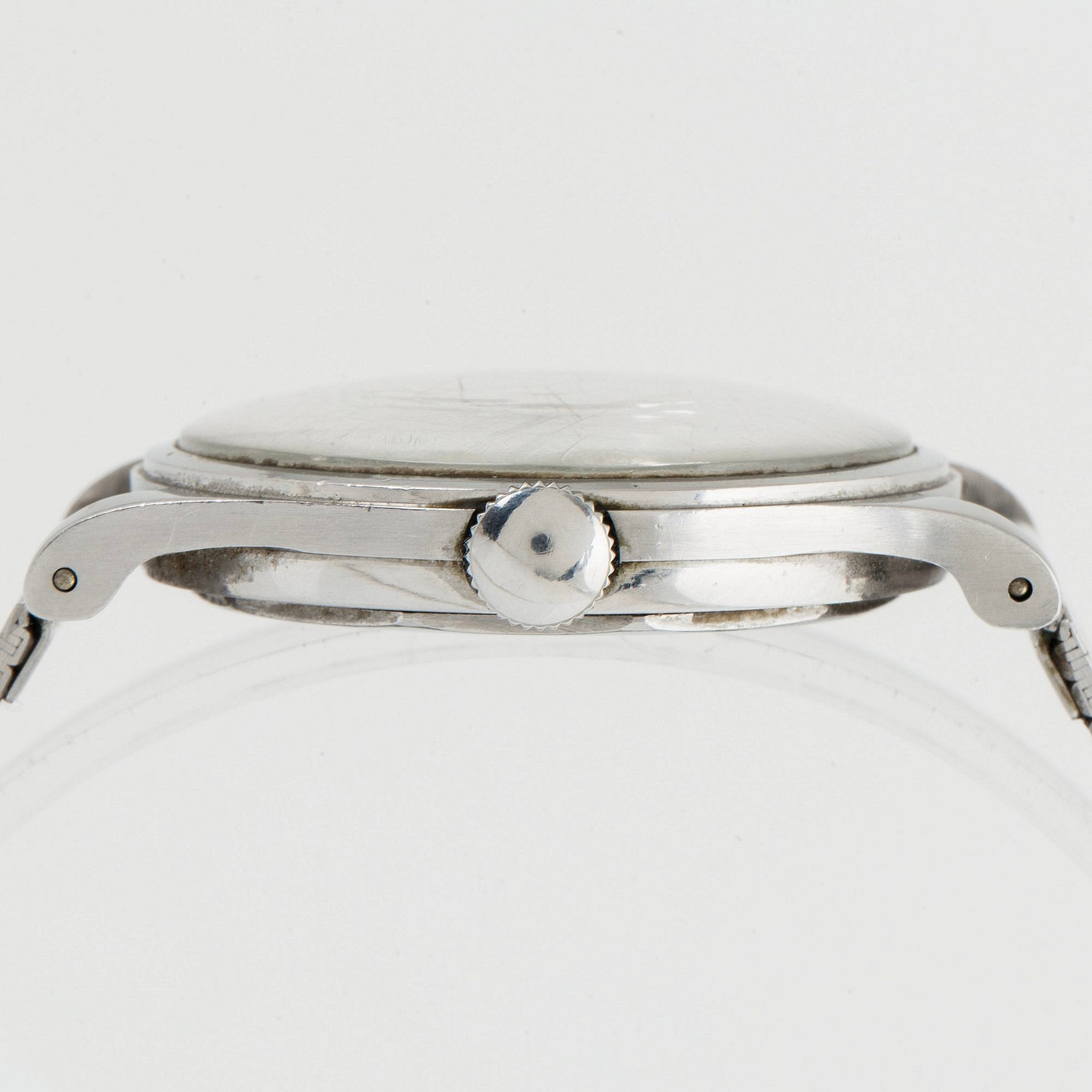

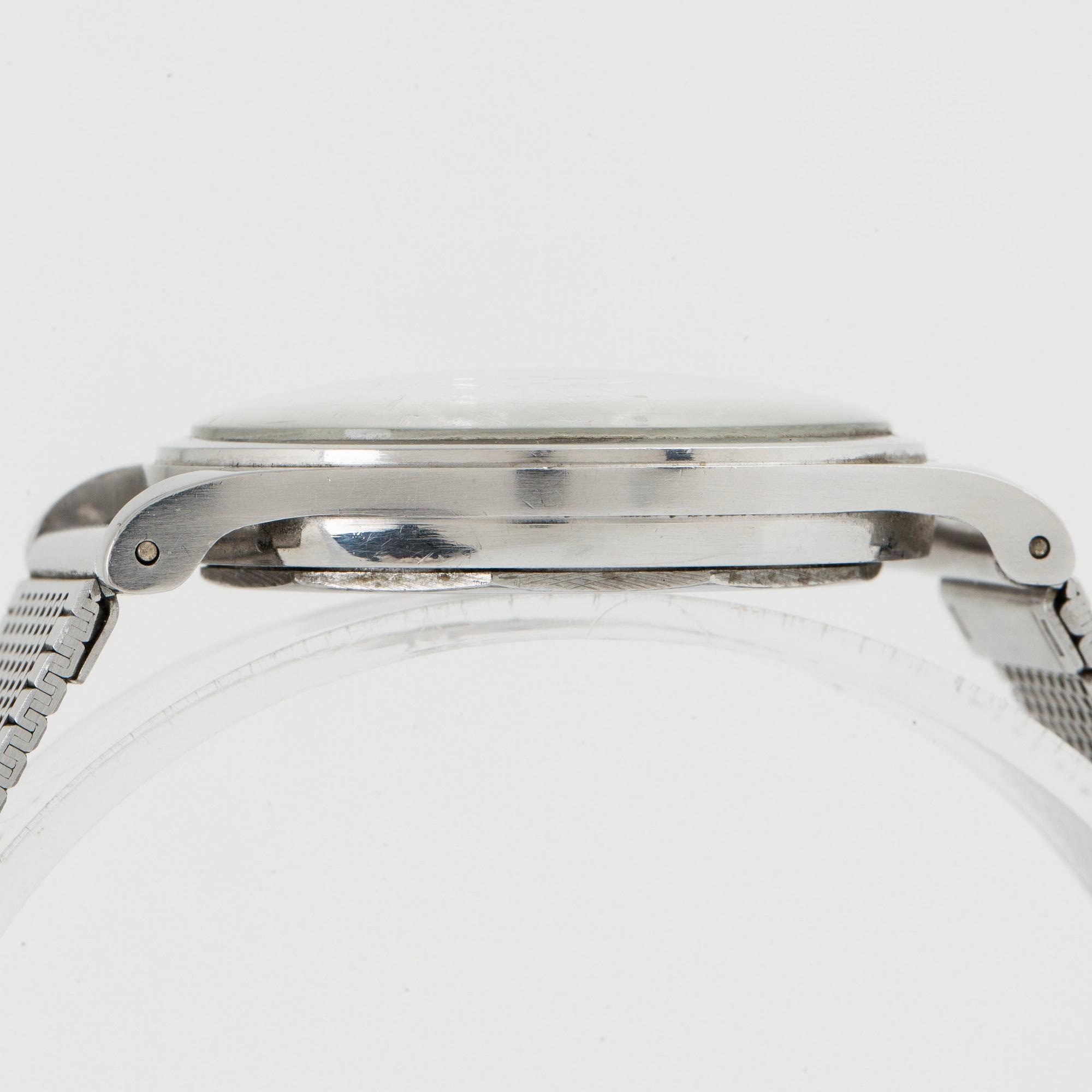

Above side profiles of very rare 2509A from 1960. Images courtesy of Bukowski’s auctions.

On gold cased examples, look for two hallmarks: typically one on the lower crown side case band and a second hallmark under a lug. For the French market the second hallmark is on the case back.

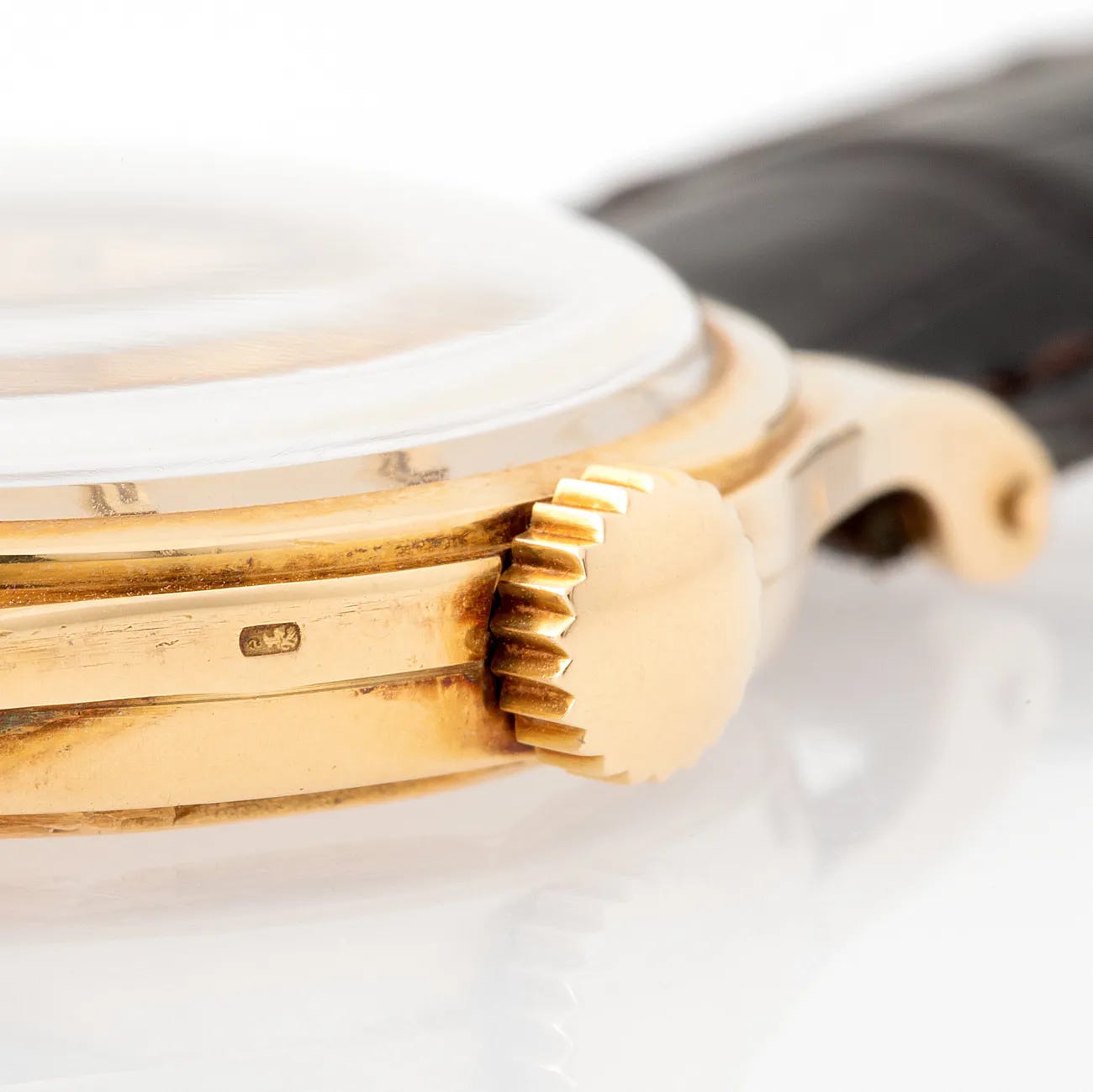

Note the crisp and deep hallmark on this 2509J Type 2A. Case band shows remnants of original satin brushing on the mid-case. Image courtesy of Monaco Legend Group.

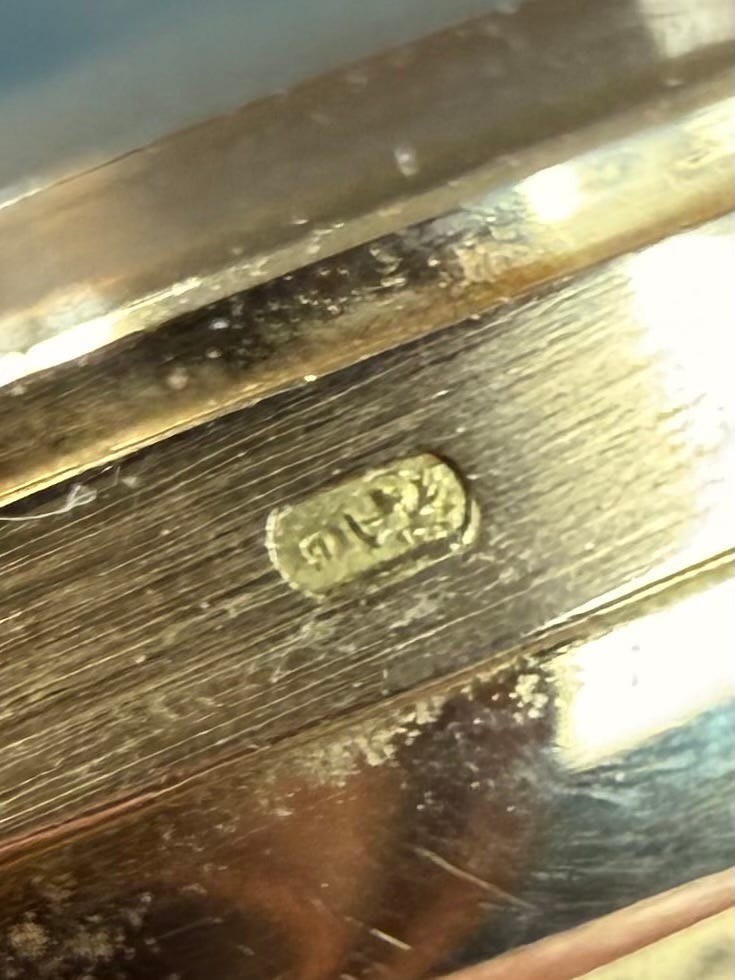

Macro view of case band hallmark. Note the crisp satin finish and consistently deep impression on all borders, Helvetia head definition and relief. with no signs of intervention. Image courtesy of @ok.wristwatch.

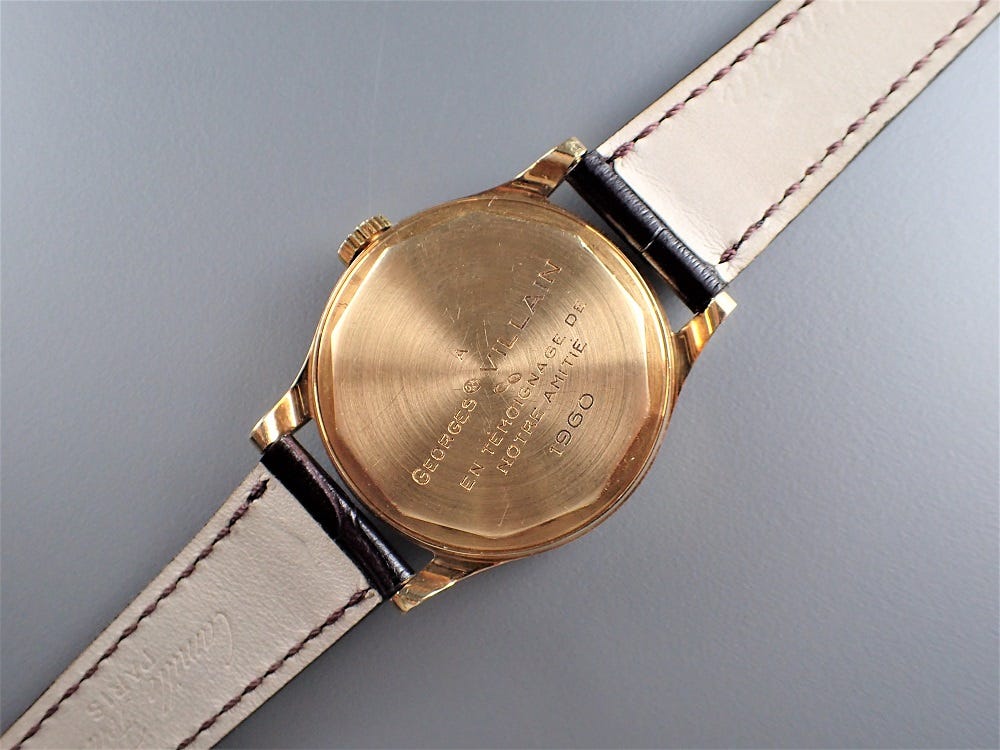

Note French hallmarks on engraved case back with original concentric brushings on very rare 2509R from 1960. Image courtesy of John Nagayama.

Look closely at the case on the strap attachment sides for a similar appearance to a crisp ref. 2508. All transitions should be at hard angles when the case is preserved in original condition with little wear. The next two images show a steel and rose gold case from different angles. These examples illustrate the way an original case should appear with no case freshening intervention to their form since they left the manufacture decades ago.

The lug tips when viewed straight-on, should be aligned horizontally without an angled taper. If the lug tips show an angled taper similar to a ref. 570 lug, that’s a sign of incorrect case polishing.

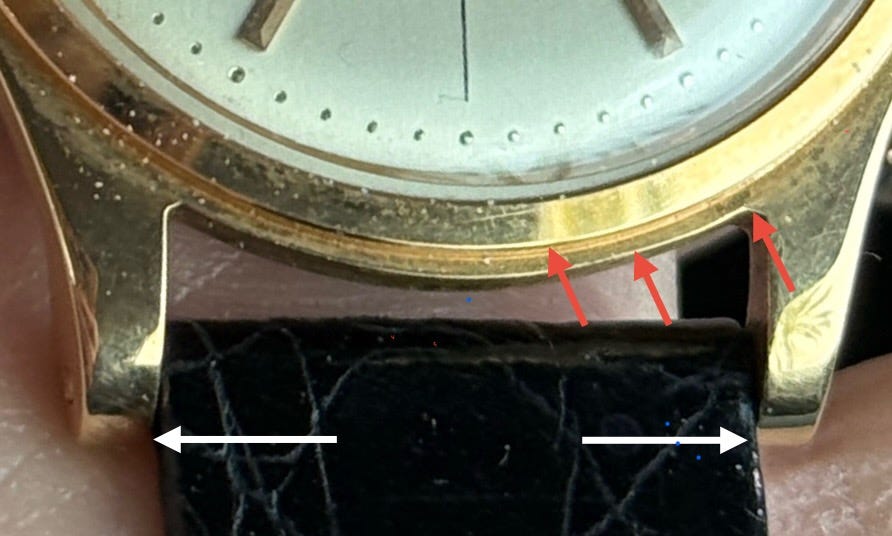

Note the sharp, hard angle transitions from bezel to mid-case side and inner notch by lugs (red arrows). The lug tips in above example are aligned horizontally without an angle or taper seen when polished (white arrows). Image courtesy of @ok.wristwatch.

The lugs are also a bit different in shapes seen over time. Steel examples below show slight lug tip differences, even when allowing for the expected non-conformity of case work that was finished by hand.

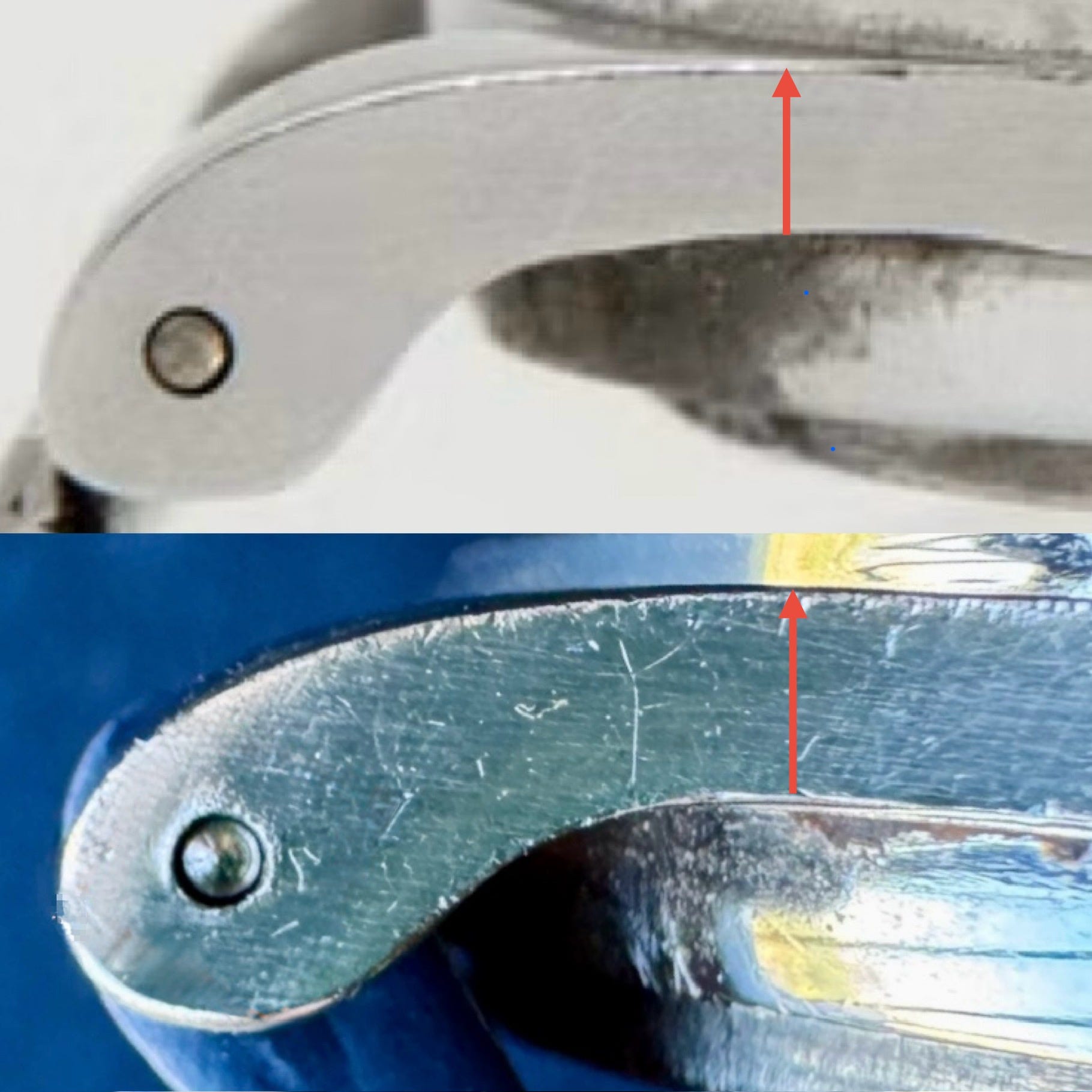

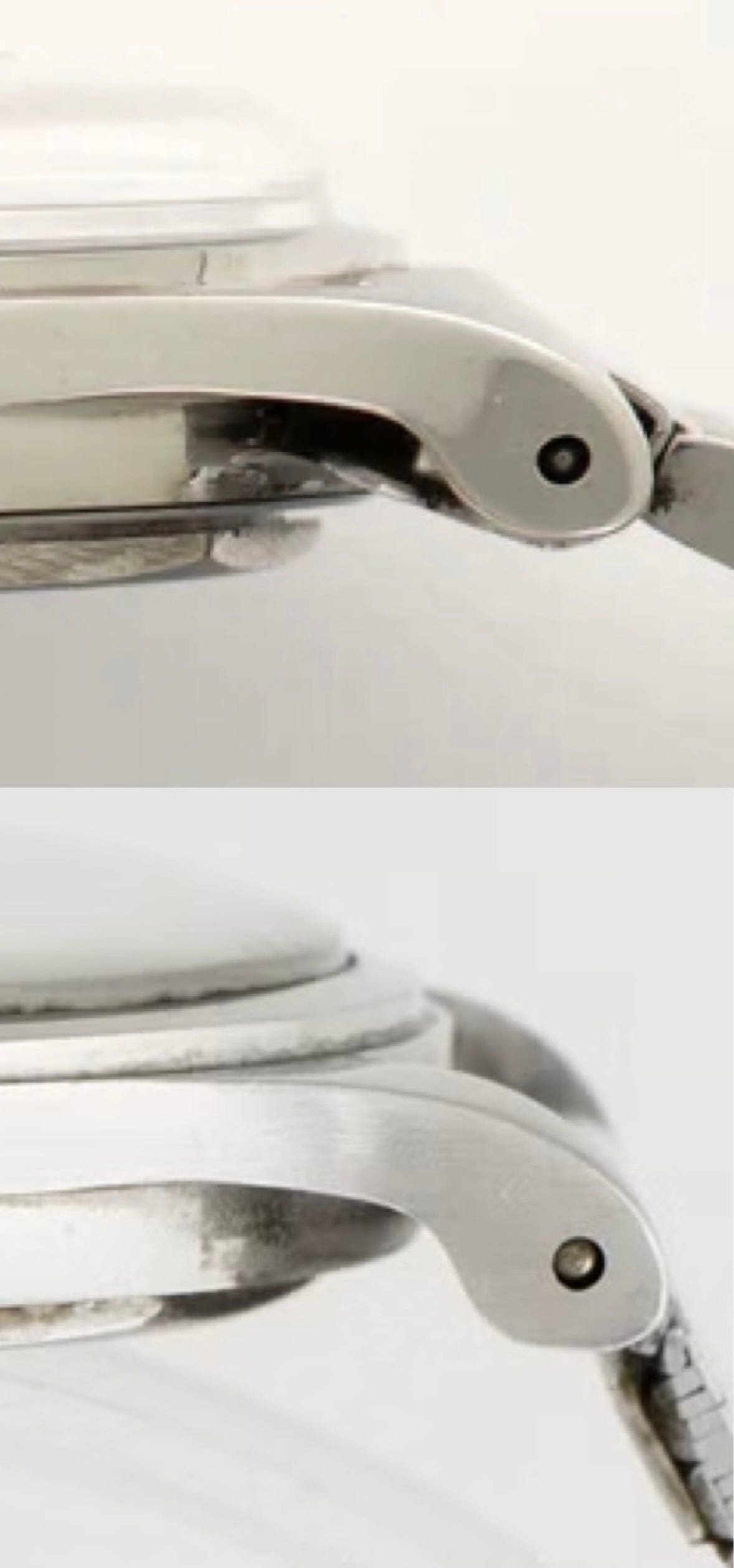

Comparison of two different ref. 2509A case lugs. Note the slight differences in shape.

Comparison of ref. 2509A above and ref. 2508A below. Note the slight difference in mid-case thickness. The 2508 case has a higher profile with the 27SC movement. 2508 image courtesy of Edo, @ edosyuu

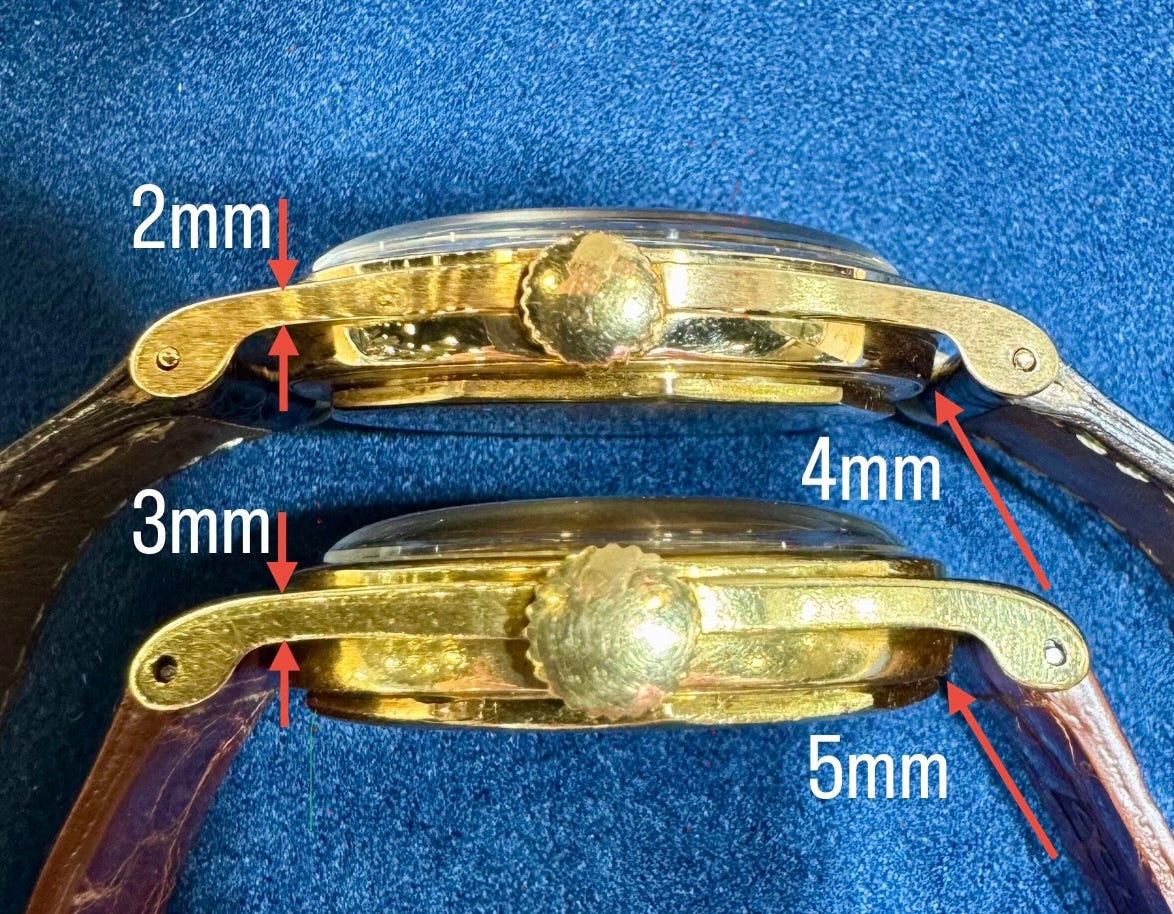

Case side comparison: Patek Philippe Ref. 2509J (top) vs. Patek Philippe Ref. 2508J (bottom). Just a 1mm difference in the lug span and lower case profile, yet it noticeably changes how each wears on the wrist.

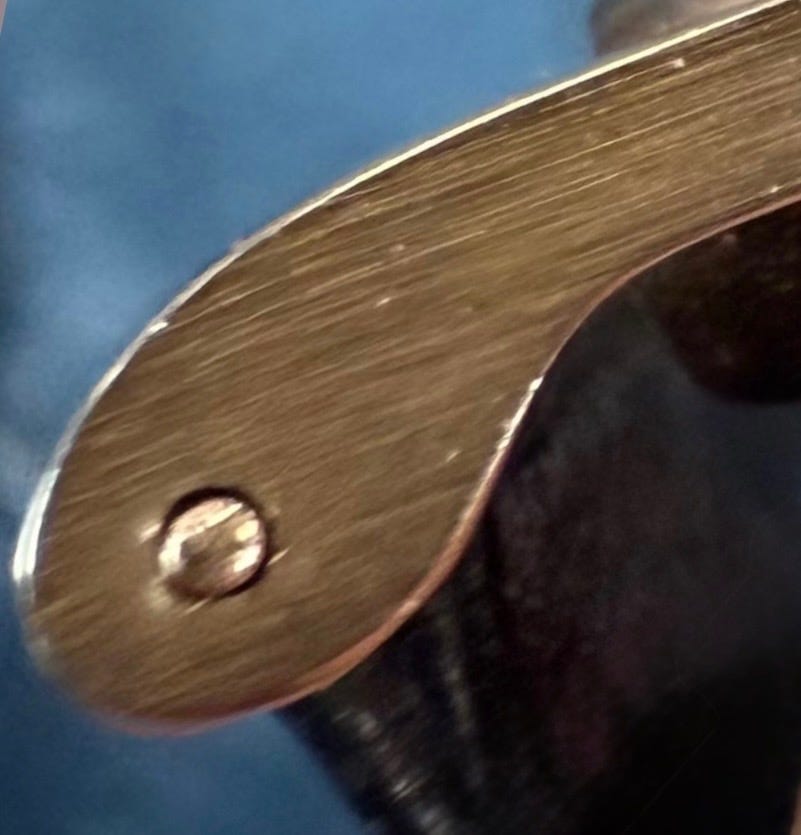

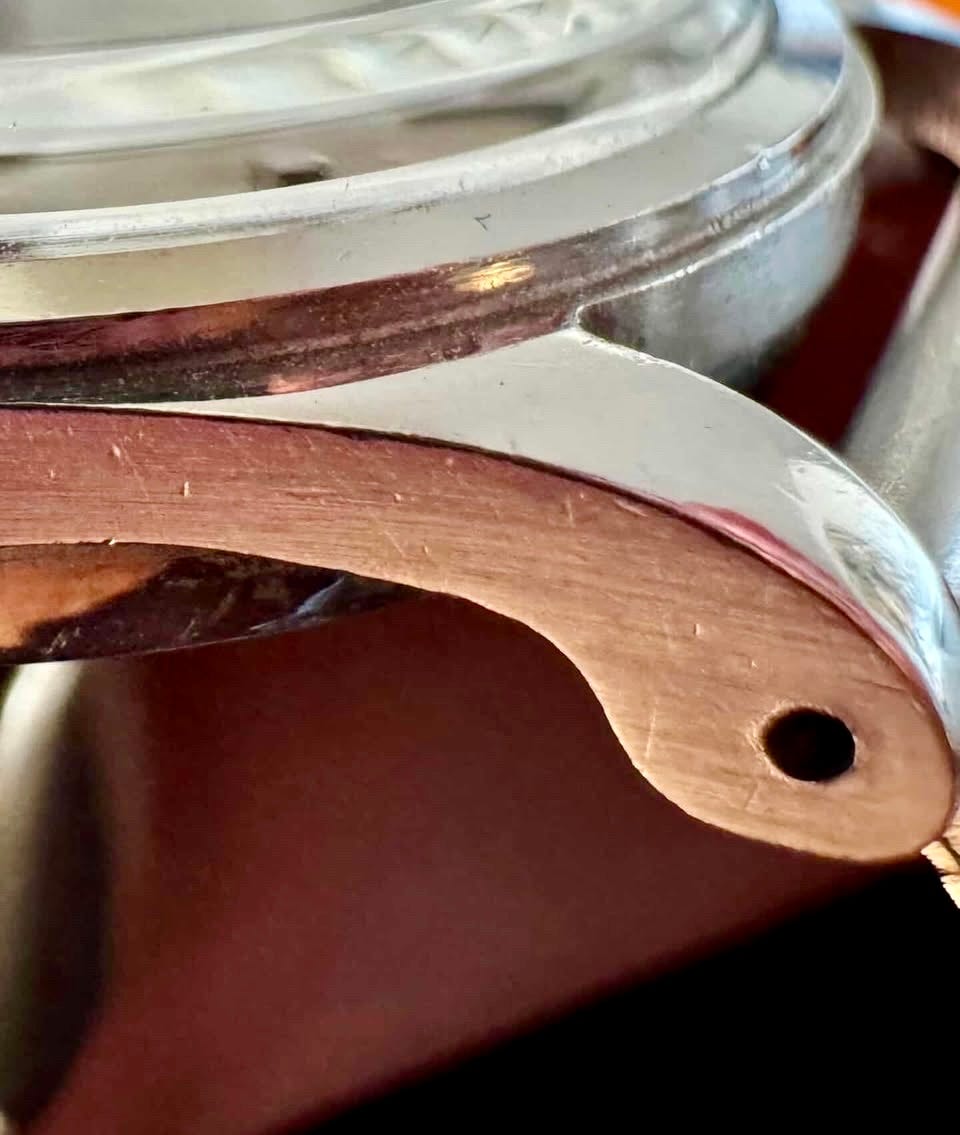

Enlarged view of 2509R lug illustrating very well preserved finish with original proportions and little evidence of wear. Image courtesy of @ok.wristwatch.

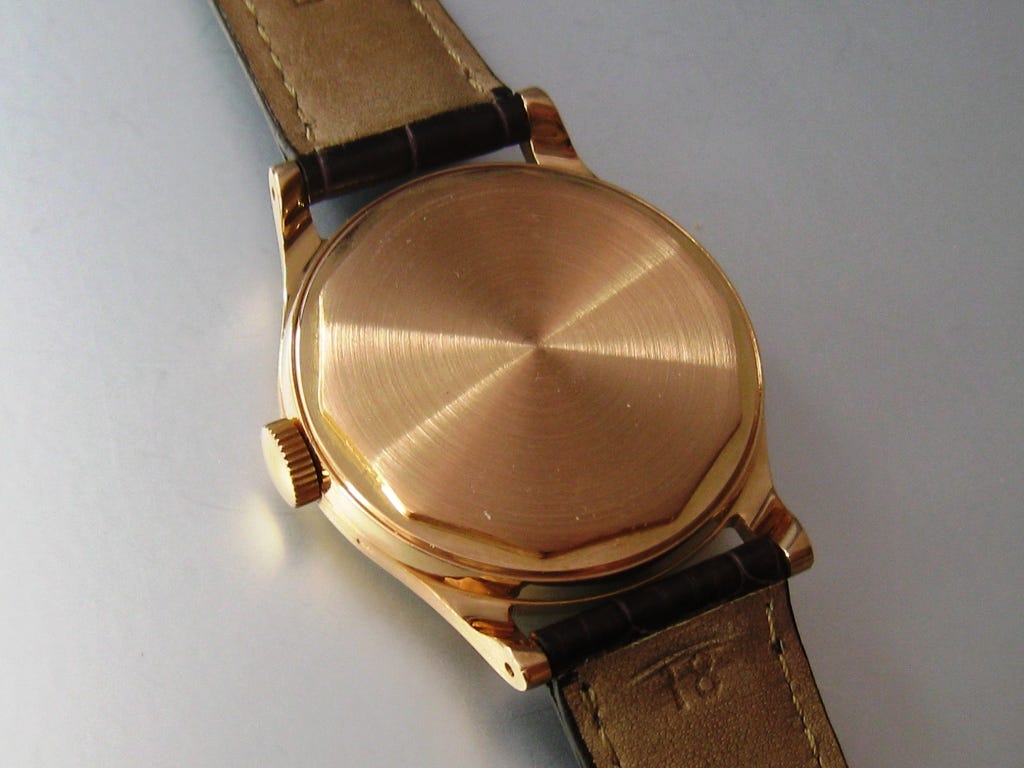

Notched screw down case back on a ref. 2509R with concentric original brushings shown. Image courtesy of John Nagayama.

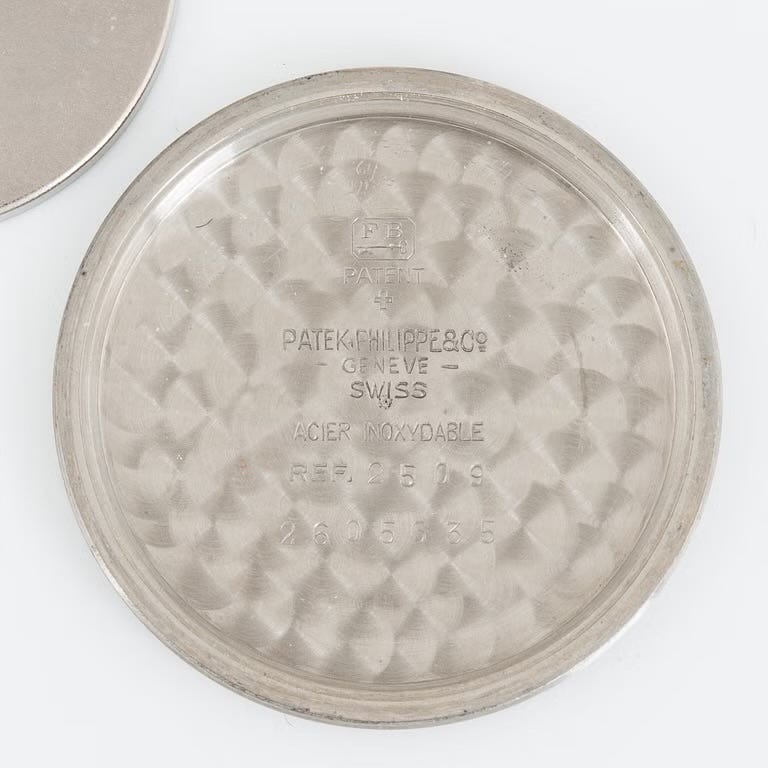

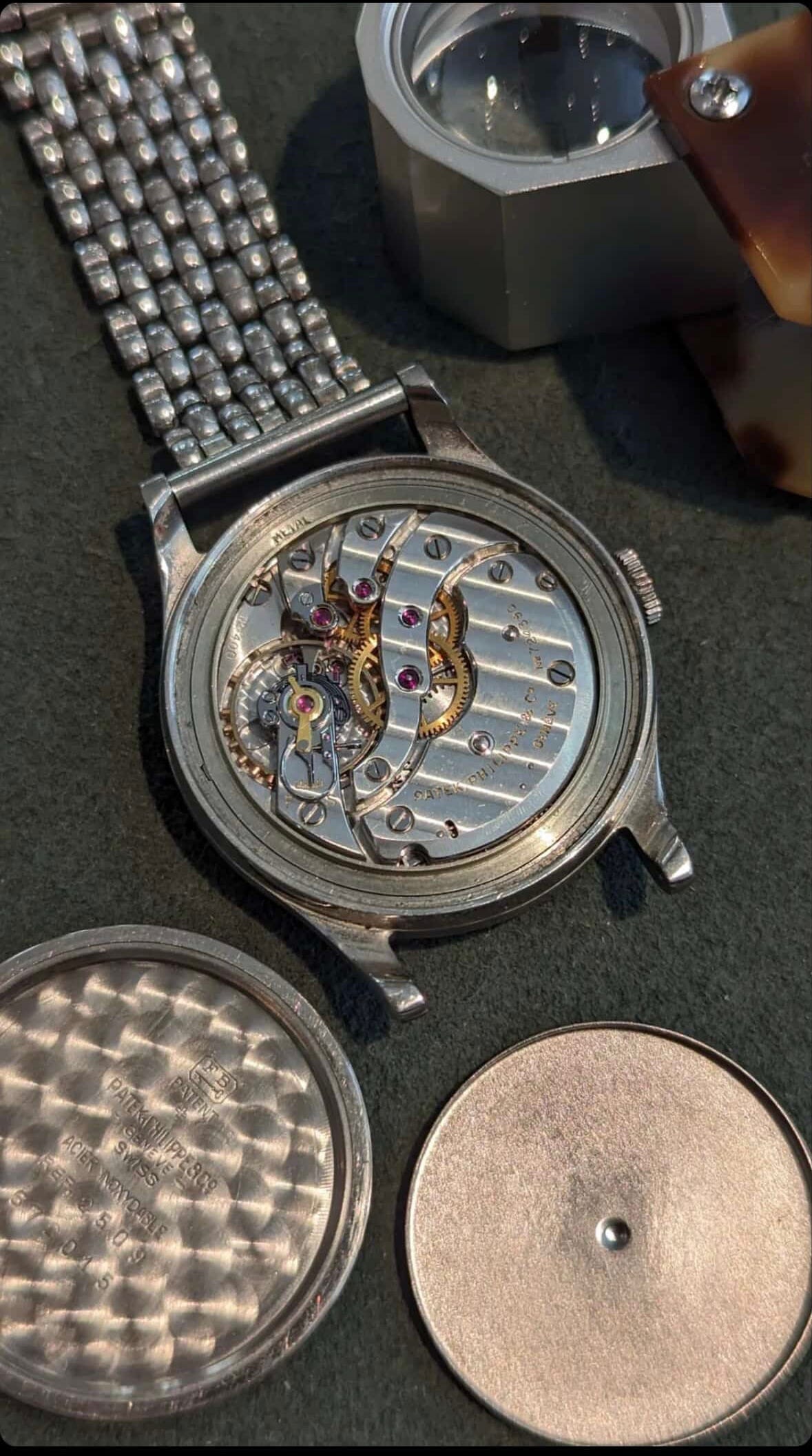

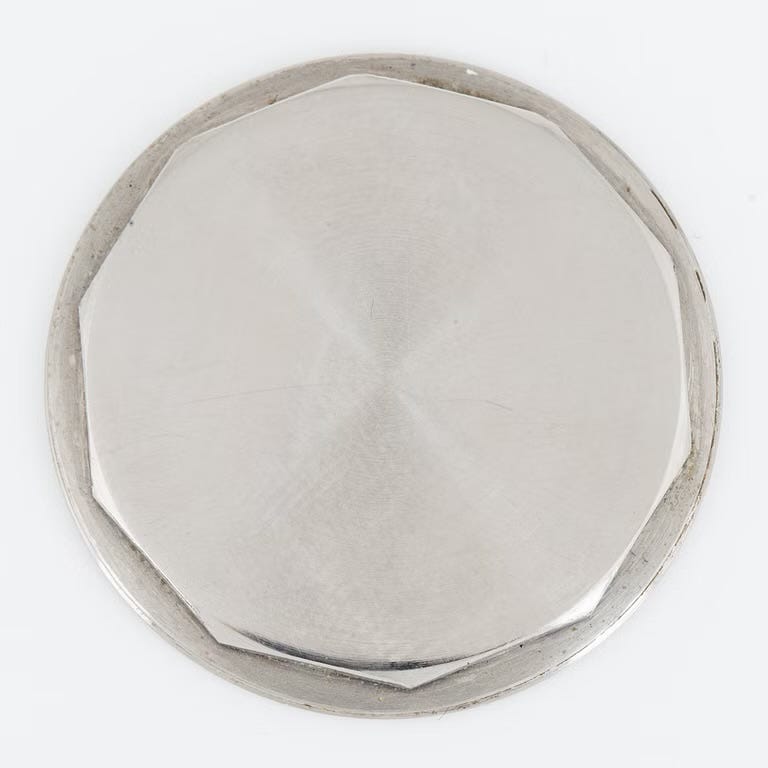

Above images show inner and outer steel case back on a ref. 2509A. Earlier image of 12-120 movement shows a gold case back with VACUUM stamping, similar to ref. 2508. Images courtesy of Bukowski’s auctions.

The winding crown differs from the ref. 2508 in steel. A thinner, knurled crown was fitted on the ref. 2509. A thicker crown type, comparable to those seen on some precious metal ref. 2508 examples completes the options known on the gold models of the ref. 2509.

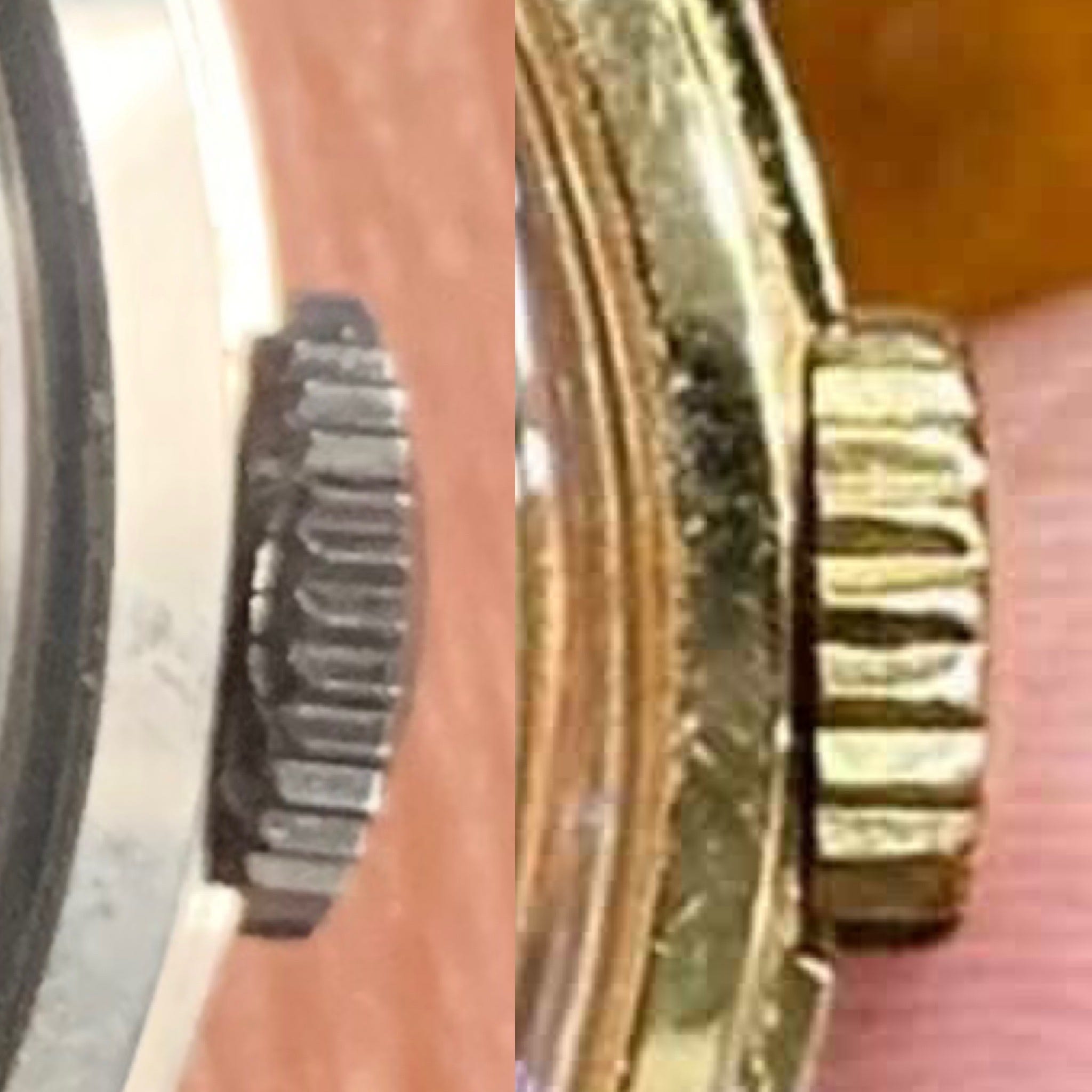

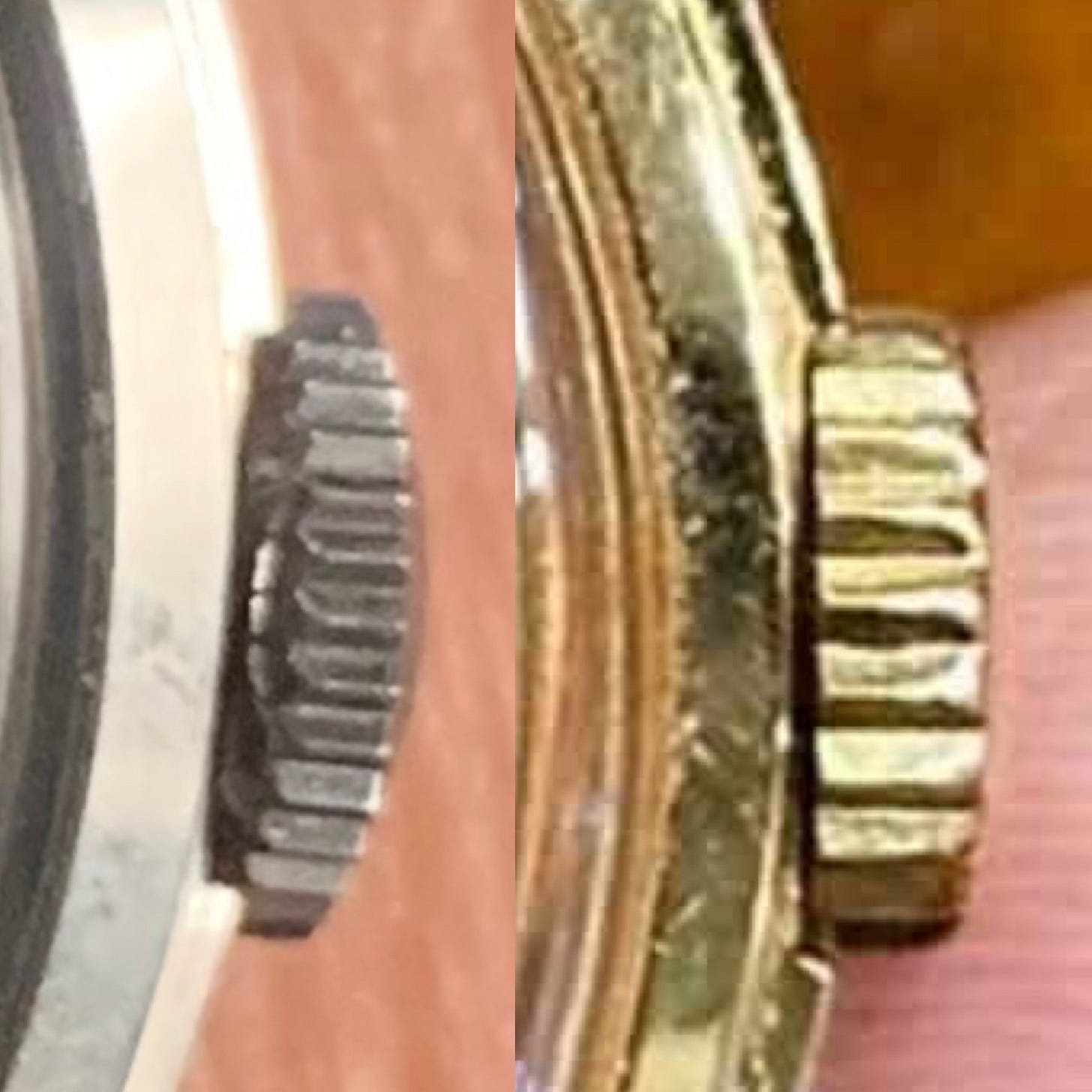

Steel thinner crown shown on Left. Thicker Gold crown shown on Right.

Look for a hard angle detent that is consistent on both sides of the crown to determine strength of the case. Case polishing will round and soften the angle of the detents. The detents on both steel and gold examples in above image are strong and sharp.

AUCTION RESULTS

Over the years, some very special and interesting ref. 2509 examples have appeared at auction. I’ve curated a compilation representing some of the rarest and some of the most curious examples that are known to have appeared in the auction market.

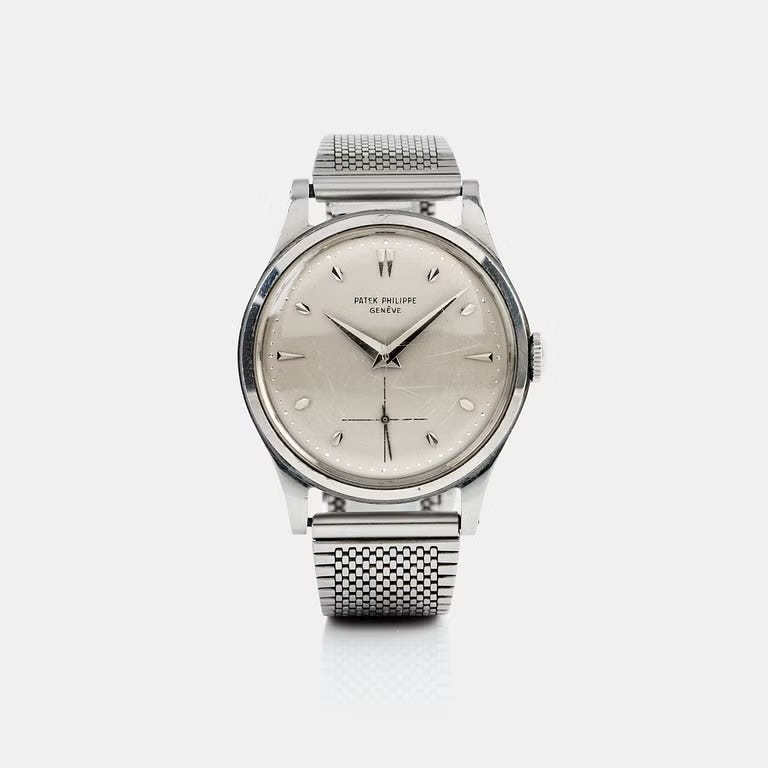

Very rare 2509A Type 1 in top original condition (excluding replacement band) auctioned at Bukowski’s November 2019. It hammered for 780,000 SEK (approx. $81k equivalent at the time). With premium, equivalent to approx. $105,000. Image courtesy of Bukoski’s auctions.

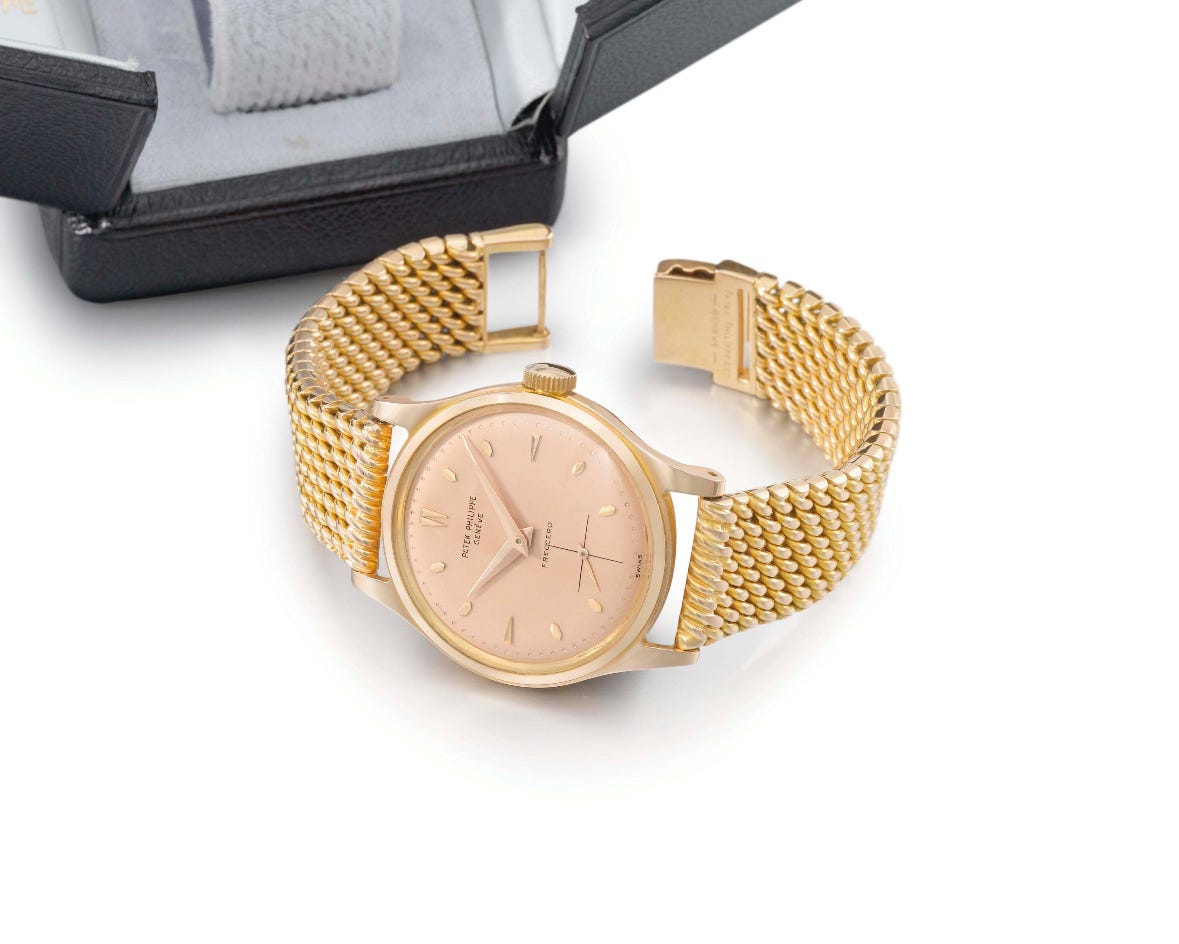

Exceptionally rare 2509R Type 1 from 1952 with rose dial, double signed Freccero on a double signed, beaded Ponti Gennari bracelet with box. Auctioned by Christie’s in 2012 for CHF 25,000.

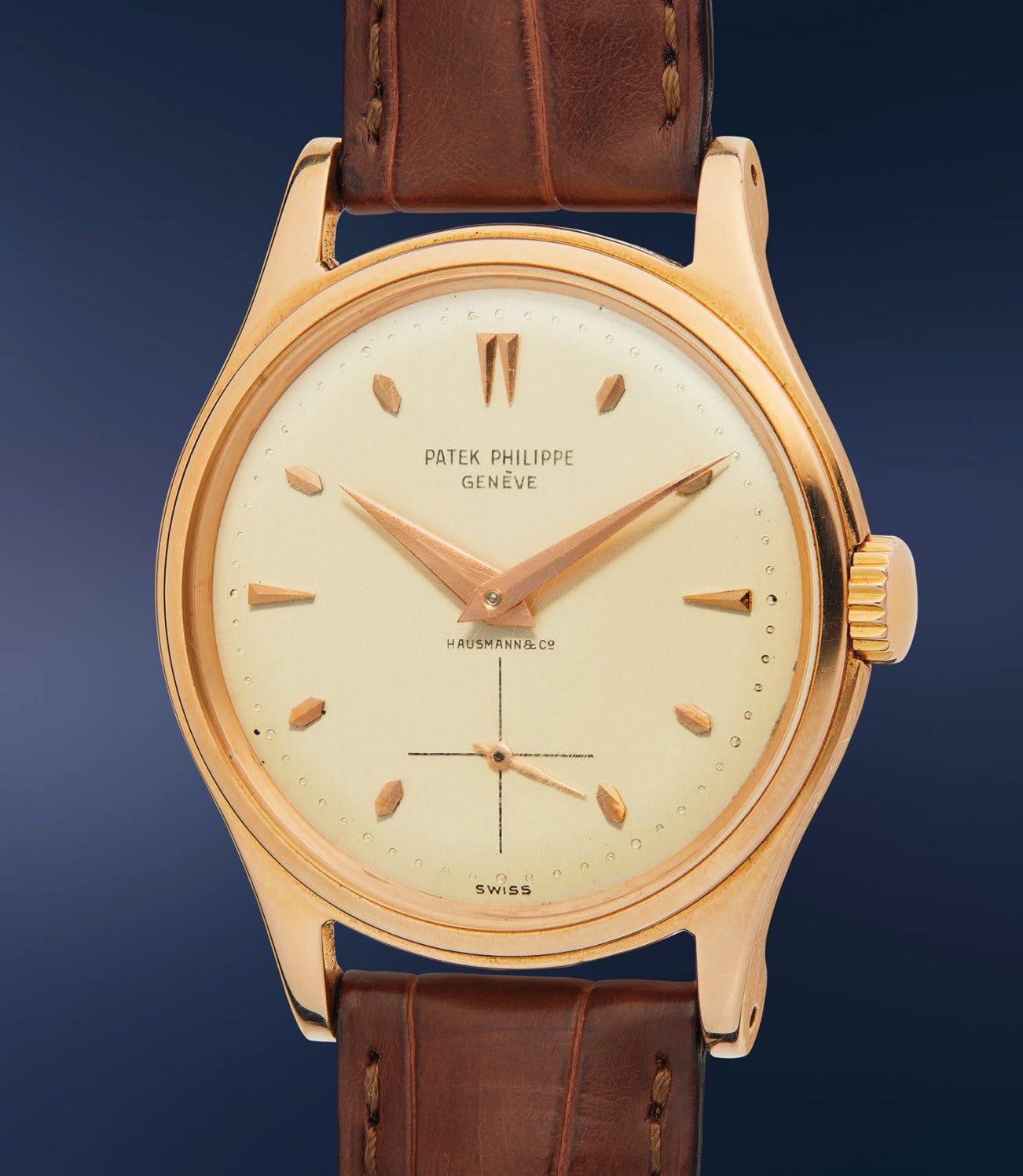

Only known 2509R Type 1, double signed with Hausmann & Co dial. Two additional double signed Hausmann & Co examples are known in yellow gold. Auctioned by Phillips in 2022 for $56,700.

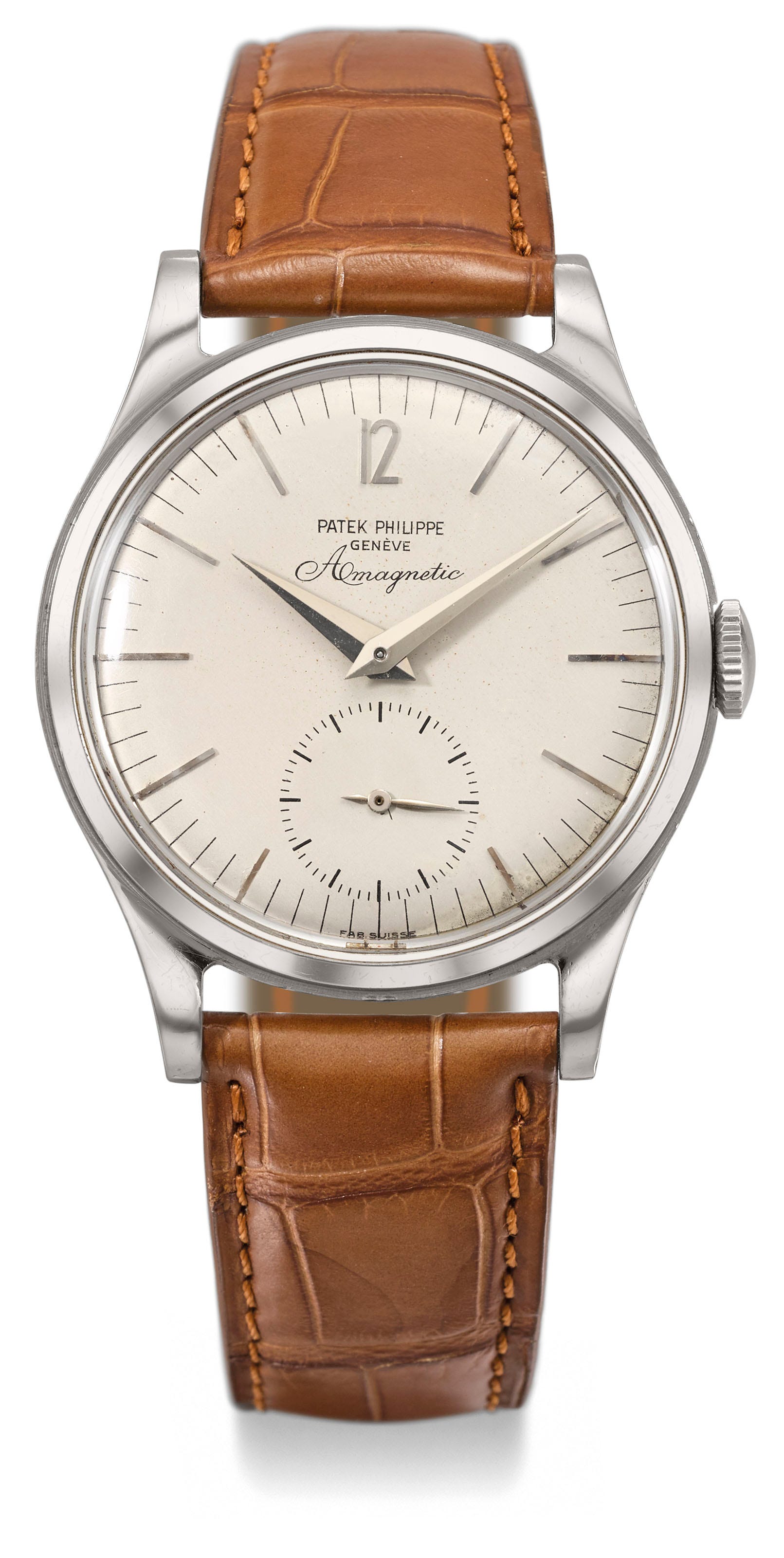

Seen at auction several times. a 2509A with replacement dial similar to type used on ref. 3417 with “Fab Suisse” printing. Last sale in 2019 at Christie’s with result of CHF 40,000. See past article about this example on HODINKEE https://www.hodinkee.com/articles/patek-2509-auction-amagnetic-christies

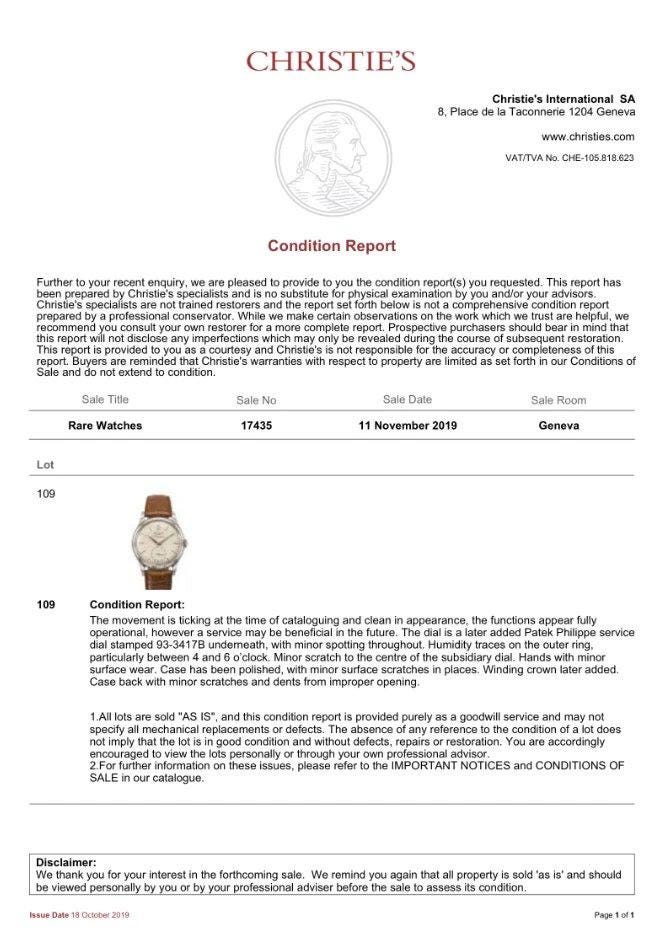

Condition report confirming the replacement dial. Image courtesy of Christie’s auctions.

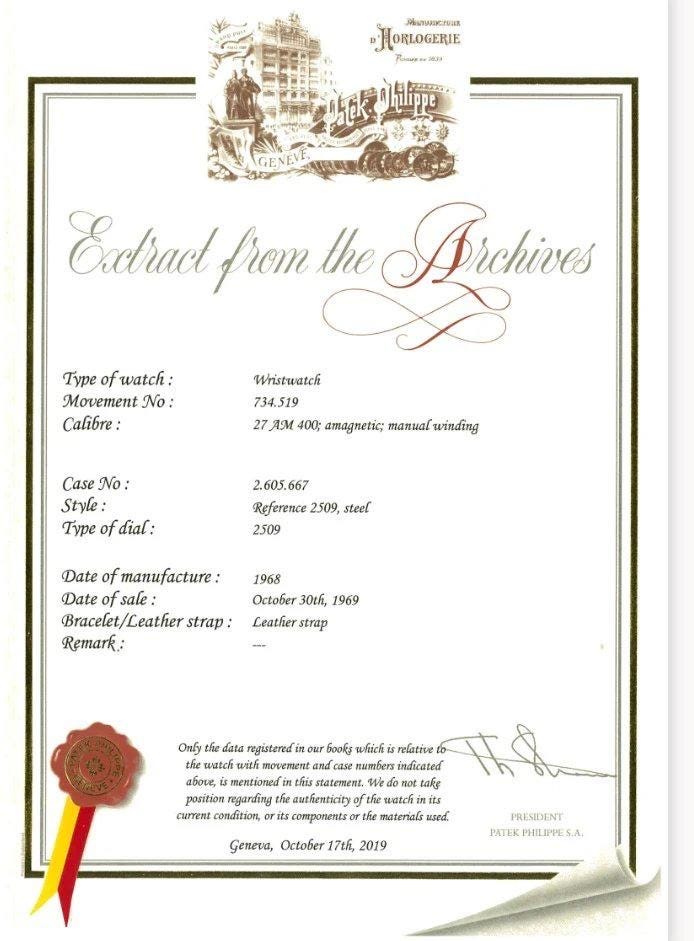

Note the 1968 date of manufacture, confirming the ref. 2509 was still produced beyond a stated date of 1967 in some literature. Image courtesy of Christie’s auctions.

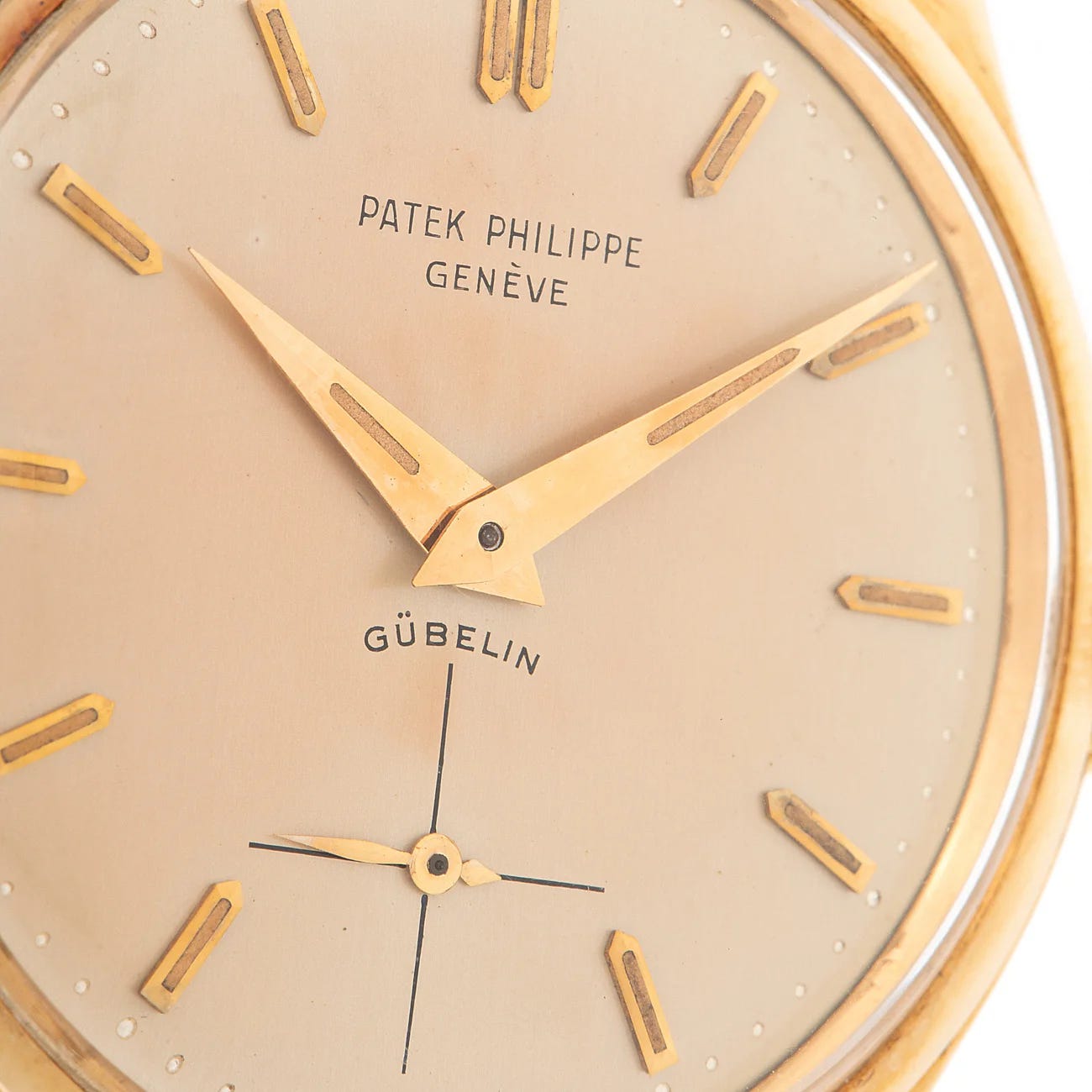

A rare 2509J Type 2A luminous dial. Double signed with Gubelin arched print. Sold in April 2022 at Monaco Legend Group auction for €33,800. Image courtesy of Monaco Legend Group.

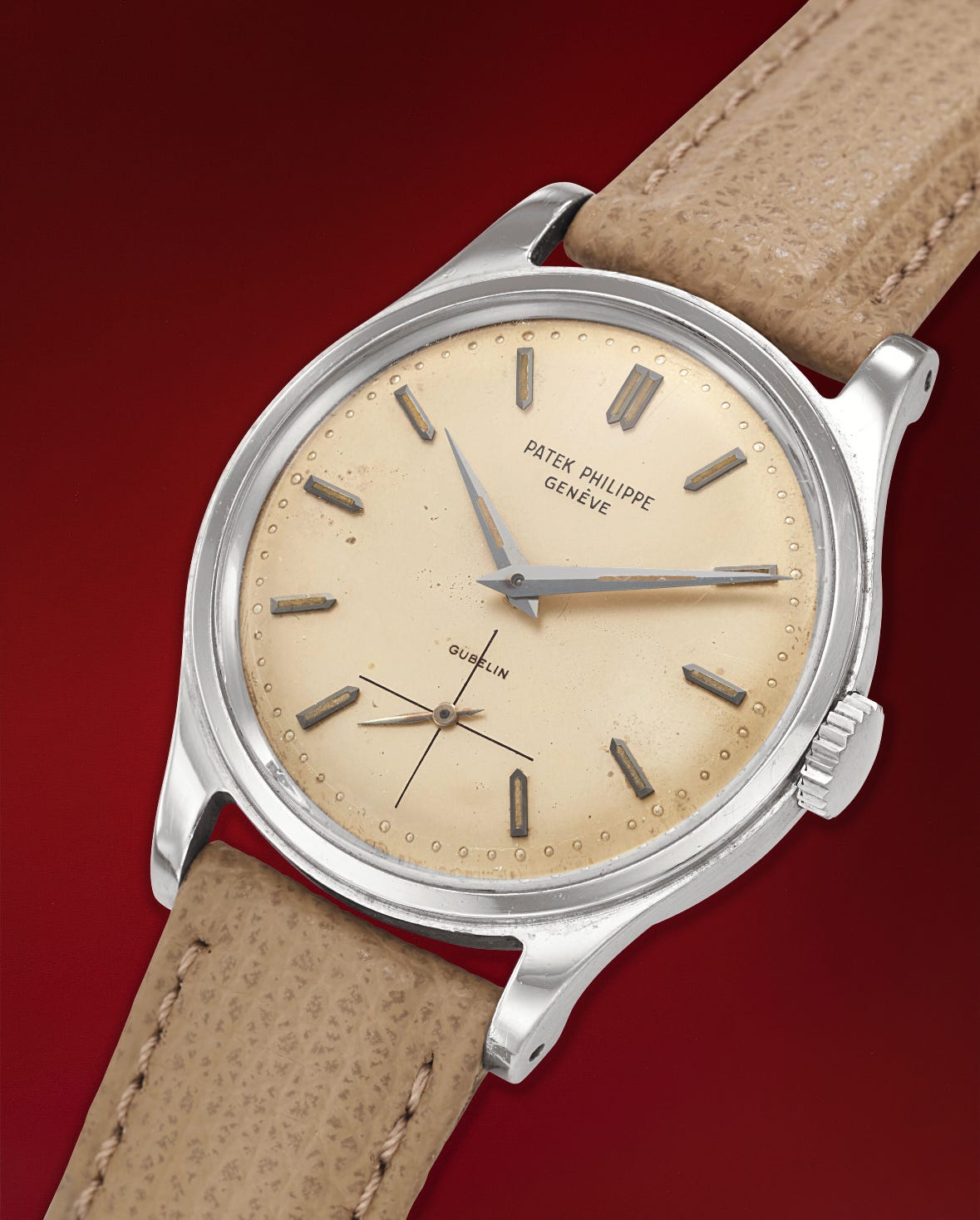

A reported only known ref. 2509A in steel with luminous dial and double signed Gubelin. This example sold at Christie’s auction on December 6, 2025 for a record result in steel of $152,400.

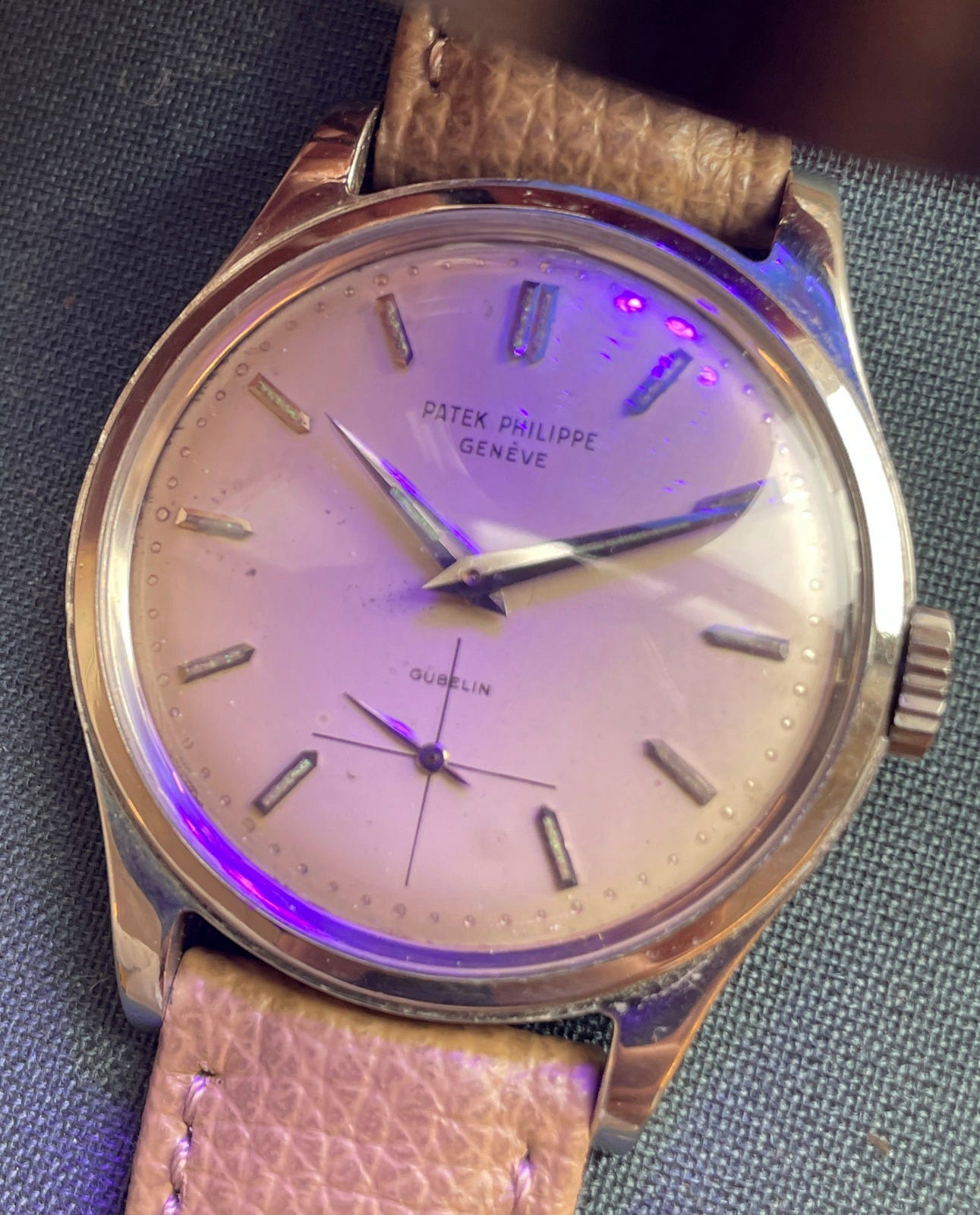

Note the UV image shows the correct look for radium lume inset on the markers. Above images courtesy of Christie’s auctions.

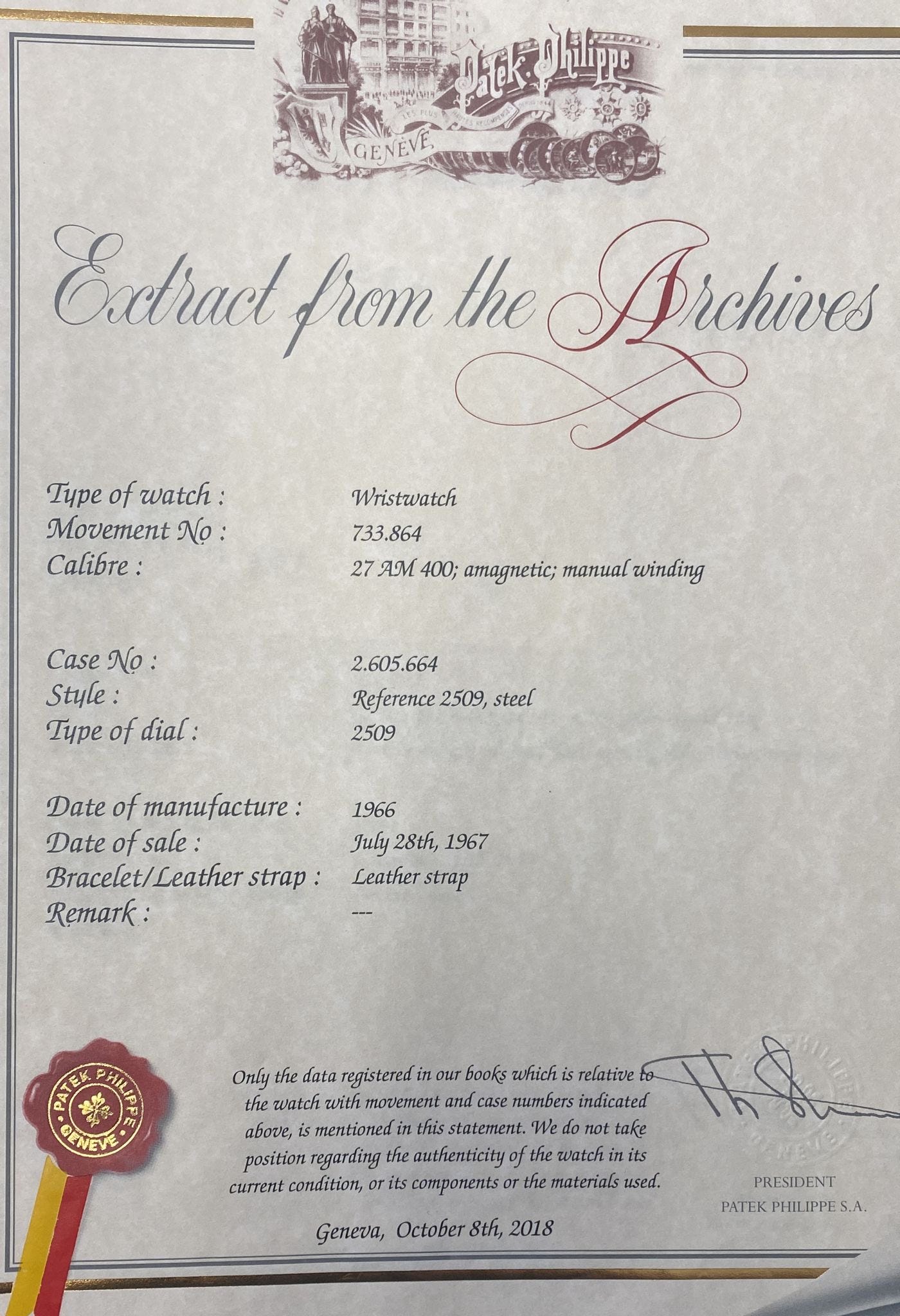

Older archive extract confirms the above example was made in 1966. Interestingly, it does not mention the lume on the dial which was common to see on extracts from this time. It also is unusual to see lume that appears to be radium on a dial from 1966. Radium use was regulated out of watch dial production by 1964.

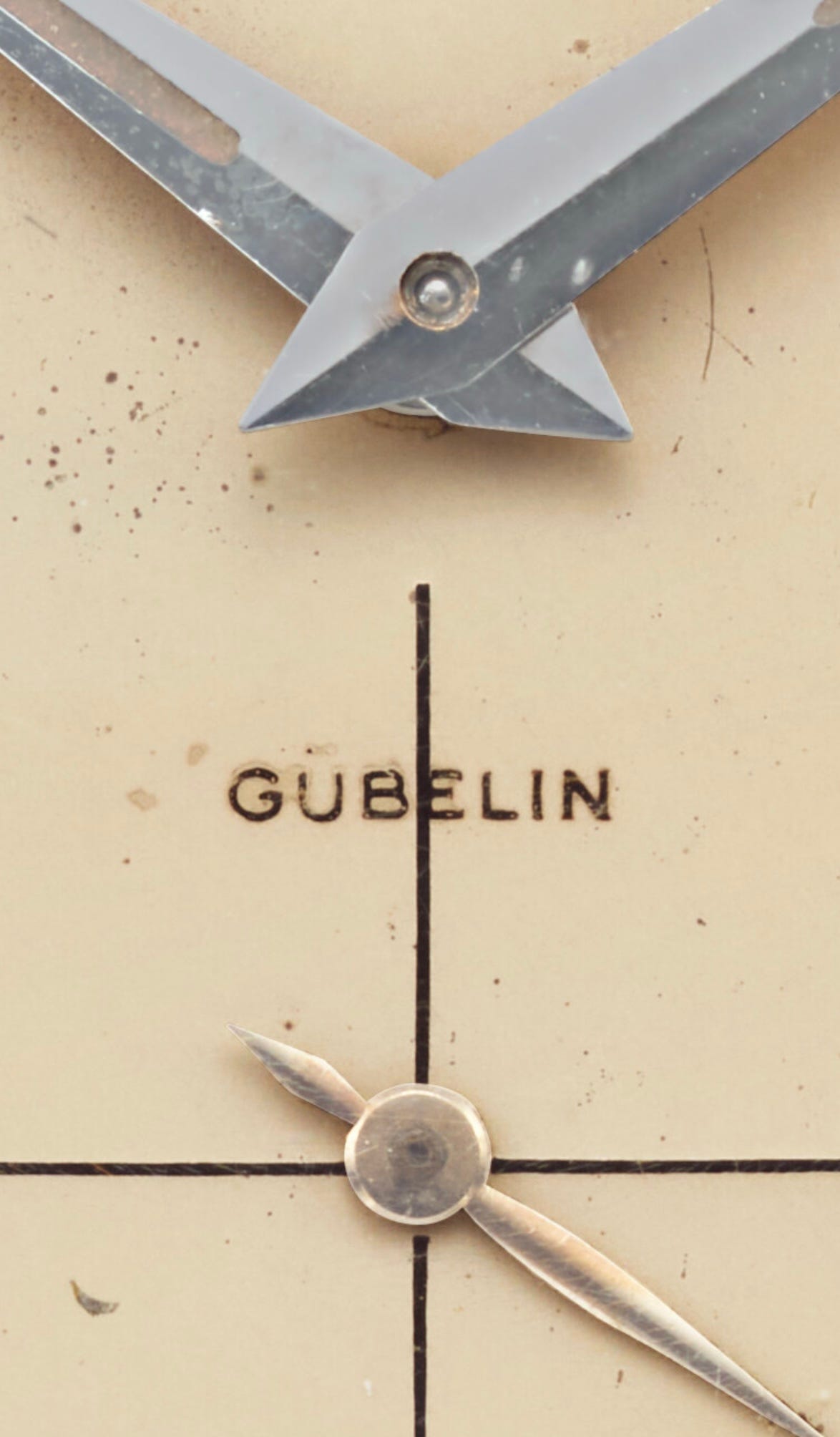

Macro view of sub-dial on 2509A type 2A sub-dial area. Note the double-signed Gubelin applied print is missing the umlauts over the “U”. Likely removed during a past cleaning. Image courtesy Christie’s auctions.

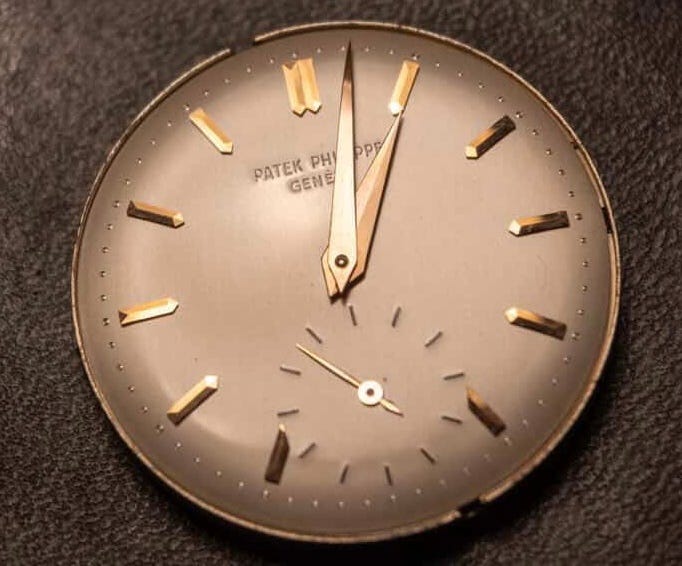

A modified type 1A dial. Above macro and below full view of a 2509J from 1953. Auctioned online by Loupe This in January, 2026 for $18,151. Images courtesy of Loupe This auctions.

The dial above is quite unusual with several curious features. It appears to be a later alteration to an original dial. Reasons for my opinion include: the printed “SWISS” placement and its typography are not correct for the era, a truncated leaf sub-seconds hand, disproportionate sector lines, (with the vertical line partially hidden under the cropped marker). Note the folded hour markers are not of the usual facet style seen on a type 1A dial. Finally, it is the only example seen with a dagger marker at six o’clock.

COLLECTING CONSIDERATIONS

Up to this point, I’ve shared some thoughts on what to look for, or reasons to pause when hunting a ref. 2509. The market in general has historically been less strong for the ref. 2509 than for comparable condition ref. 2508 examples. However, relative rarity is pretty much on par between the two references. This dynamic has resulted in some excellent examples selling for much lower prices in the past when compared to the ref. 2508.

Truly untouched dials are becoming increasingly difficult to source, as are those that have seen only the most restrained cleaning—just enough to remove surface dust without compromising the original finish. When these examples surface, they often require an appreciation for honest aging, with all the nuances that come from decades of wear, storage, and environmental exposure.

While becoming more challenging, finding top-quality examples with a clear and credible chain of provenance, paired with honest overall condition is my guiding principle. As I consistently advise and strive to follow myself, the primary objective should be to pursue the finest, most original condition attainable within one’s budget.

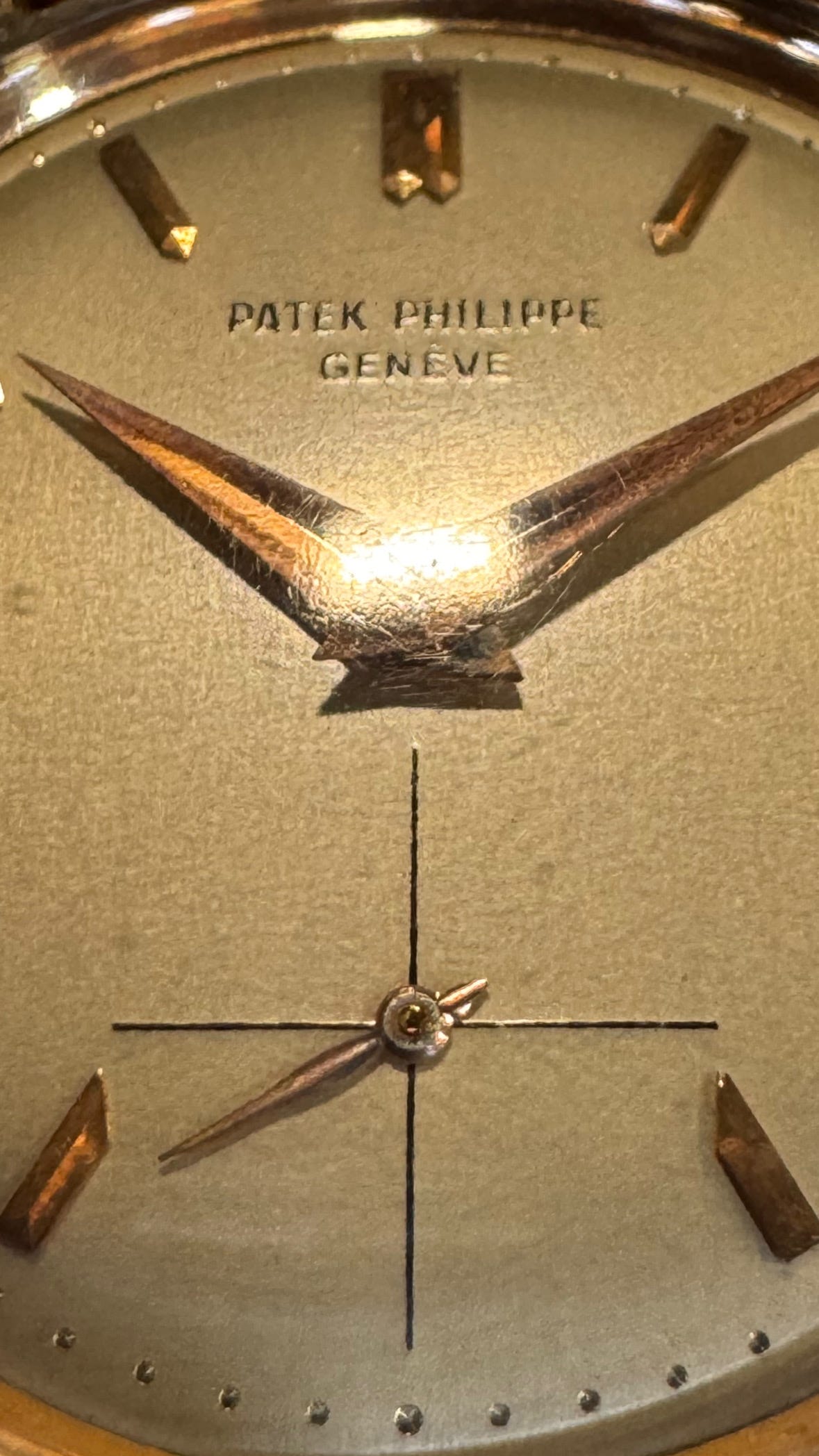

Macro view of dial with honest aging appearances. Image above shows light reflection, while in hand, the appearance of the dial is an even champagne tone from the aged zapon lacquer. Often this level of detail isn’t visible to the naked eye.

Proper and sympathetic restorations of the least invasive means possible are acceptable and take careful scrutiny to evaluate. If unsure of the condition, seek the advice of others with known expertise. I would also recommend using a Geiger counter and UV light to assess lume on any of the type 2 dials with luminous markers. I’ve had good success with these tools as a means to assist in condition assessments. It still takes studied knowledge, hands-on experience and a trained eye to fully appreciate overall condition and understand what is being offered.

The addition of ephemera such as original boxes, straps, buckles, period bracelets and papers add value and desirability to proper condition examples. These items support the provenance narrative when available and deservedly justify a premium.

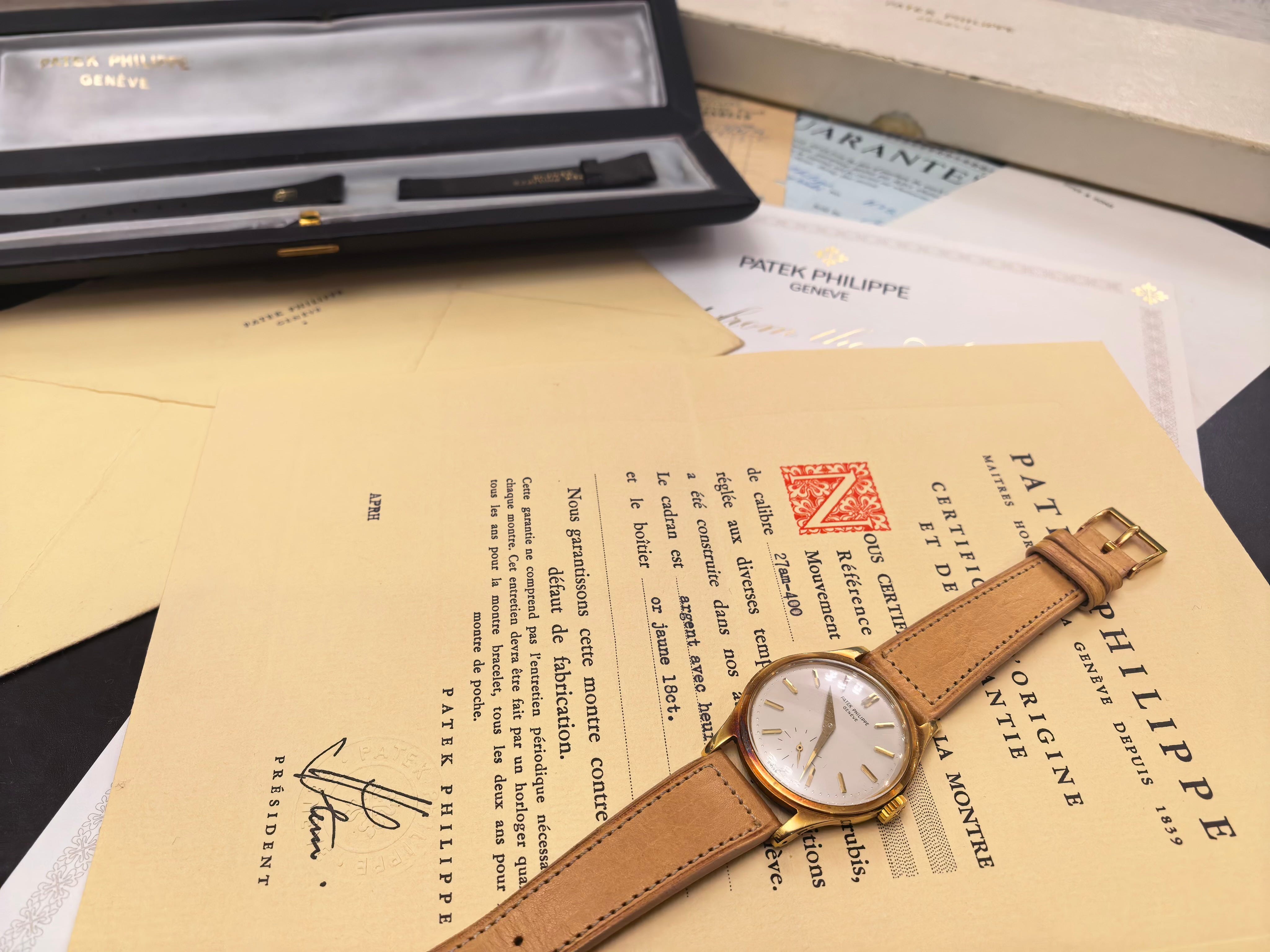

A trove of original accessories and extract from the archive. Images courtesy of Dave Marcinek, @dmm718,

A final treat of an incredible original package that compliments this rare 2509J from 1965. This example is unusual with its two hallmarks located - one each- between both lugs. One of the hallmarks is also stamped “750”, which is highly rare to find on a Patek from this era. Inside the case back is an assay mark from the British import office and possibly an inventory number engraved by a retailer from the era in Birkenhead. The movement inside is the 27-400AM.

Very rare 2509J with complete set including the original receipt, inner and outer box, certificate, envelope, strap, buckle and a current extract. Made for the British market. Note the beautiful patina on the case. Interestingly, yellow gold can turn more rose and rose gold can turn more yellow in tone from oxidation over time. Image courtesy of a very important collector and good friend.

CLOSING THOUGHTS

So now we’ve given tribute to the ref. 2509, as it rightfully deserves. This is an interesting reference to consider for any serious vintage Patek collector and has great presence on most typical sized wrists.

Does a collector need to have a ref. 2509 and a ref. 2508 in their collection? Not necessarily, but a case can be made for either reference alone, or together. While in some respects the references are quite similar, they are also different. Consider the similarities and differences between them in regard to dial types, dial finishes, movements and case design. If you haven’t read the In Depth: Patek Philippe Reference 2508 article yet, give it a read HERE and you will see the complementary and divergent nuances between these two references.

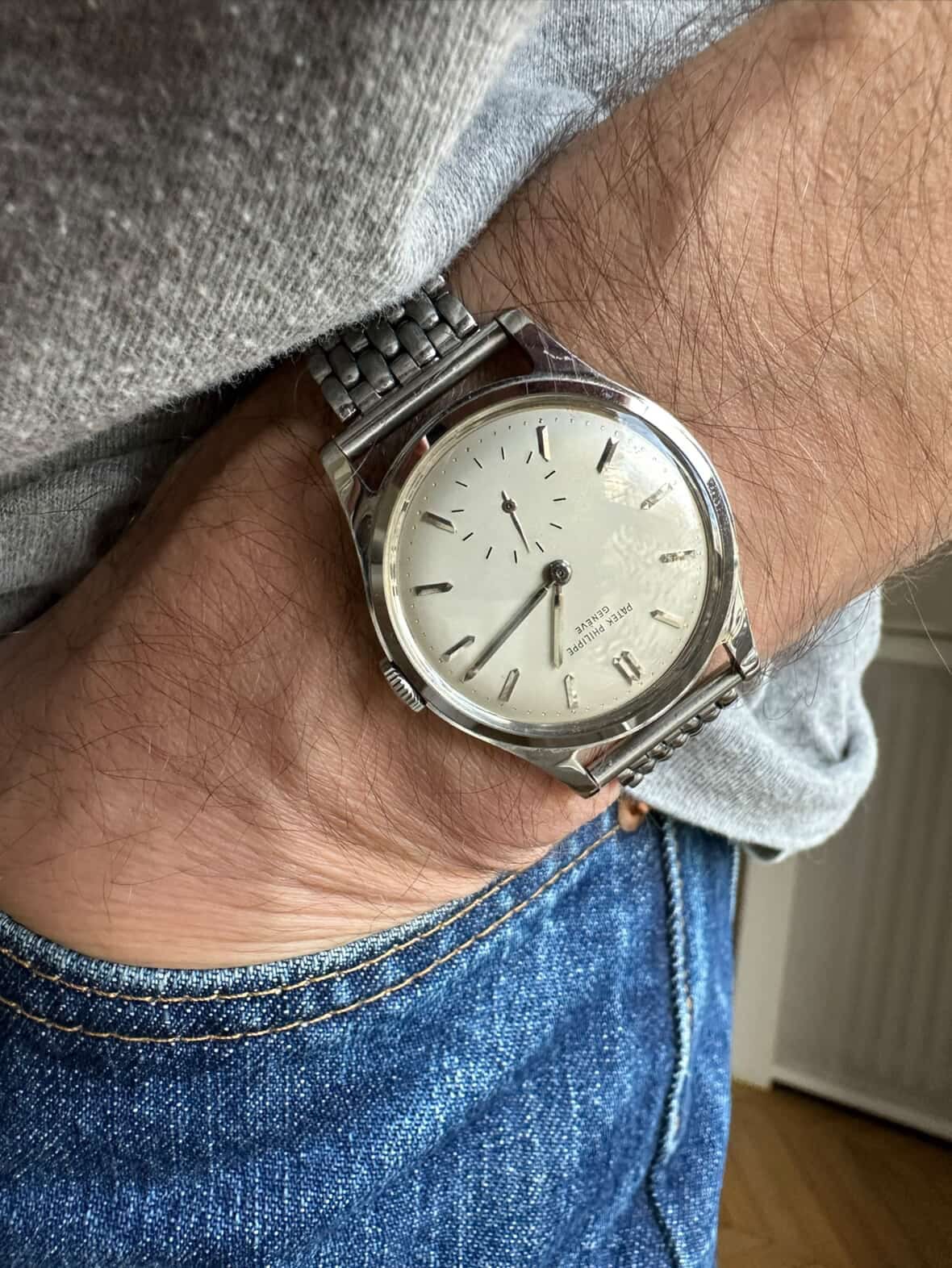

A very rare 2509A, Type 2B on the wrist. Image courtesy of Luke Woods, @lkwds.
